CNK is a professional manufacturer of LCD display modules. The segment code VA vertical alignment display module is used in many electronic projects and equipment, such as: energy storage equipment, vehicle instruments, industrial control equipment, etc. It is suitable for I2C interface and ROHS compliant.

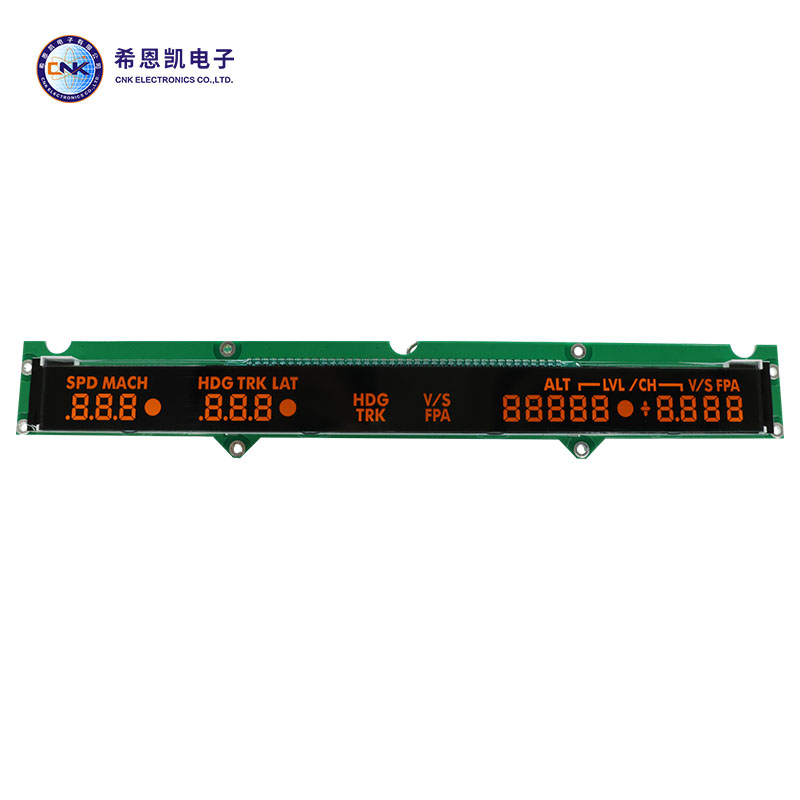

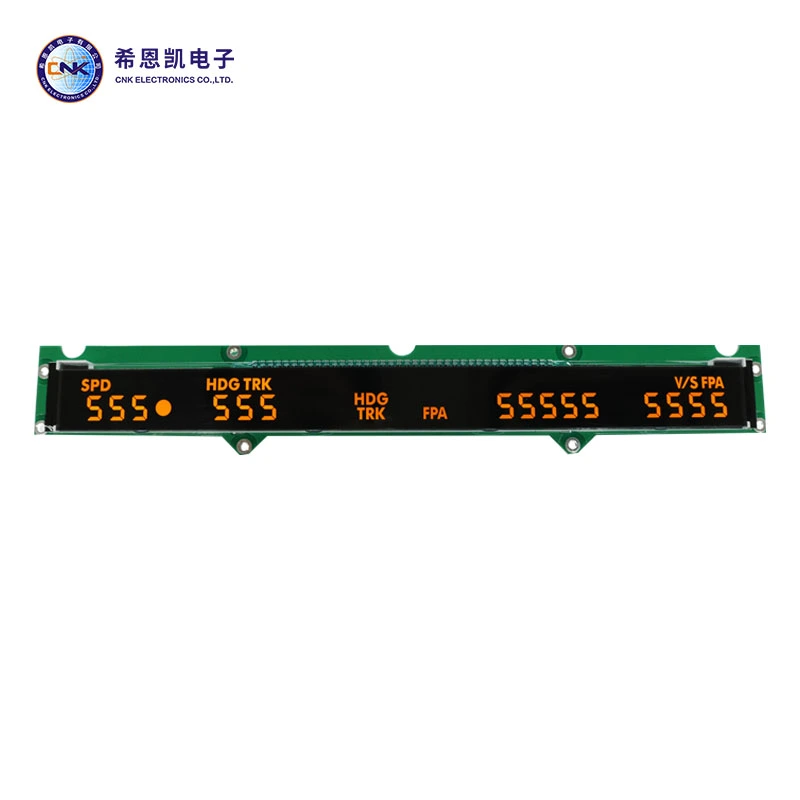

CNKD1501-24332A1,Segment code VA vertical alignment display module ,it has a high contrast ratio of 1000:1, an ultra-wide viewing angle of 110°, an operating temperature of -35℃+85℃, and supports full customization to meet customer needs as much as possible.
1)High contrast ratio 1000:1
2)Ultra-wide viewing angle 110°
3)-30+80℃ wide operating temperature range
Active Area: 217(W) x 15.3(H) mm
Outline Dimension:244(W) x 37(T) mm
Panel: VA vertical alignment display
LCD Operating Voltage:4.5V
Operating Temperature:-30°C+80°C
Storage Temperature: -35°C+85°C
Viewing Direction: 12: 00
Color range: RGB
Brightness:N/A
Interface: I2C
RoHS: Compliant
Applications:
Energy storage equipment, Vehicle instruments, Industrial control equipment, etc.
