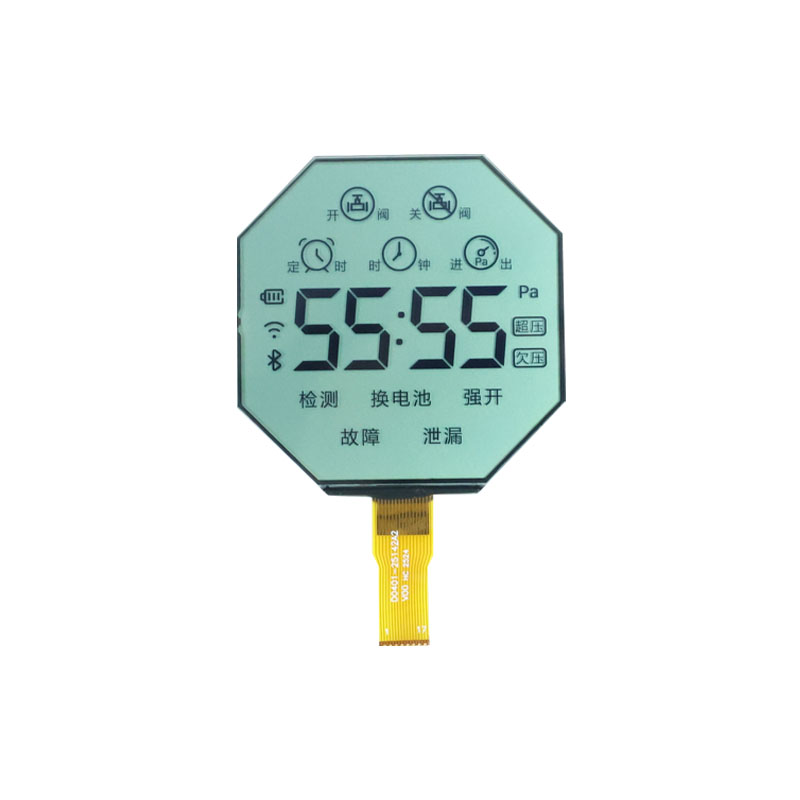

Octagon Segment LCD

As a leading monochrome display manufacturer in China, CNK Electronics Co., Ltd. has launched a new industrial-grade customized product—the Octagon Segment Monochrome Display (Model CNKD0401-25142A2). Core Performance Advantages High-Precision HTN Display: Featuring a positive reflective LCD mode and a 12 o’clock viewing direction design, it maintains ultra-high contrast even in strong light. Extreme Environment Adaptability: Operating temperatures range from 0~50°C, storage temperatures span -60~10°C, and it supports high-temperature/high-humidity storage at 50°C/90%RH. Compact Modular Design: The ultra-thin 58×60×2.8mm body integrates a large 55×55mm viewing area. The 1/4 Duty + 1/3 Bias driving scheme combined with 3V low power consumption significantly extends device battery life. This octagon segment display supports flexible customization in size, interface, temperature range, and more, and has been successfully applied in Water and electricity meters.
Model:CNKD0401-25142A2

Send Inquiry

Product Description

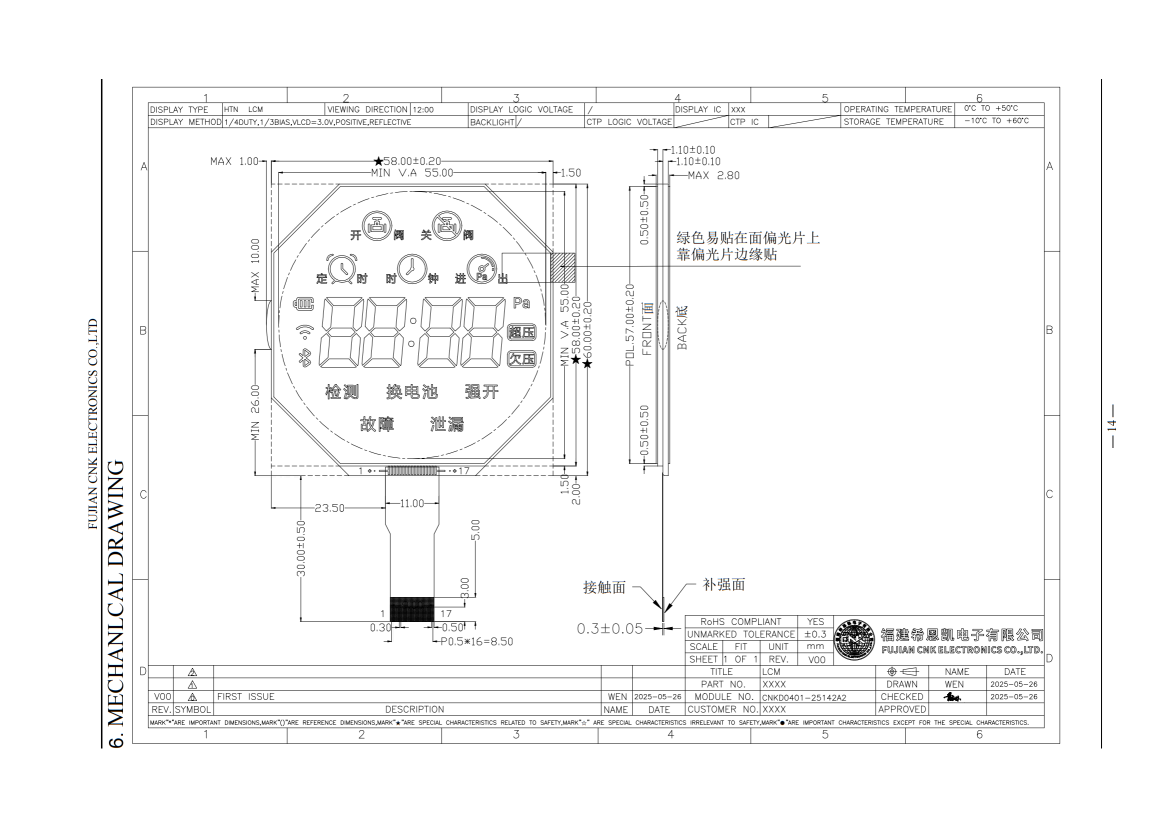

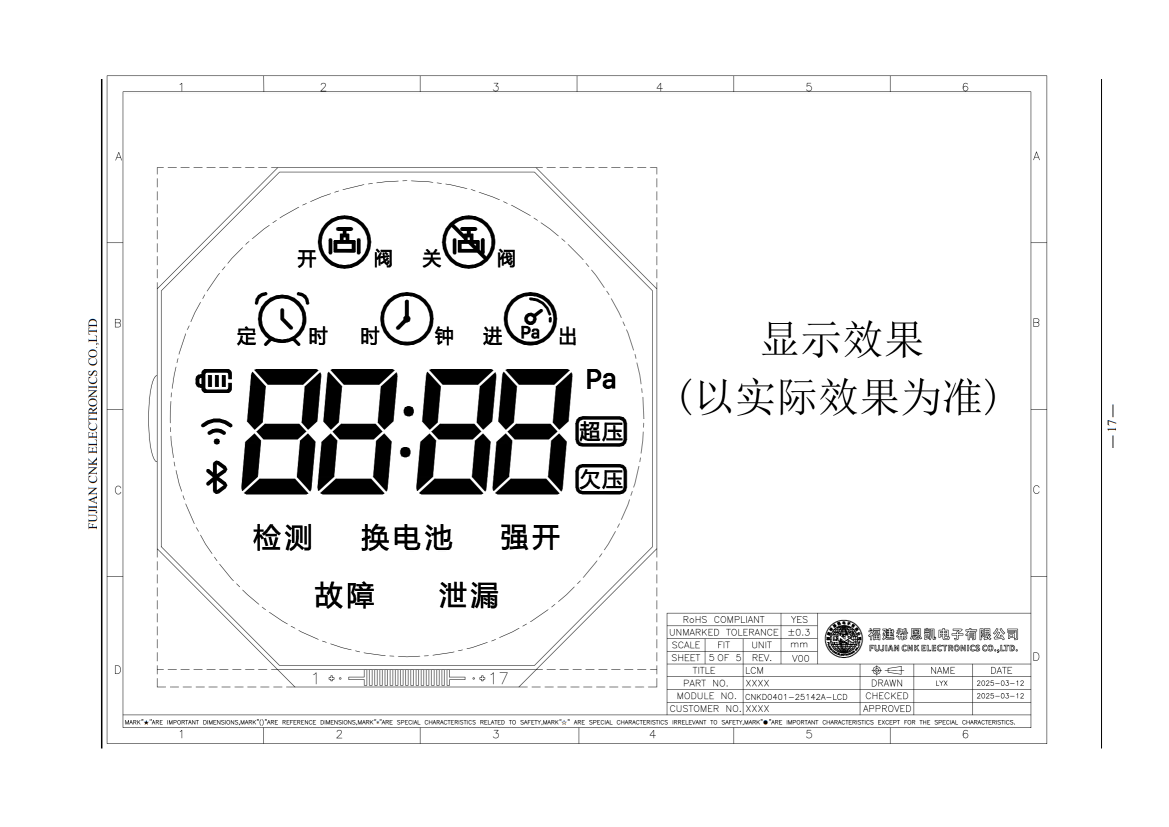

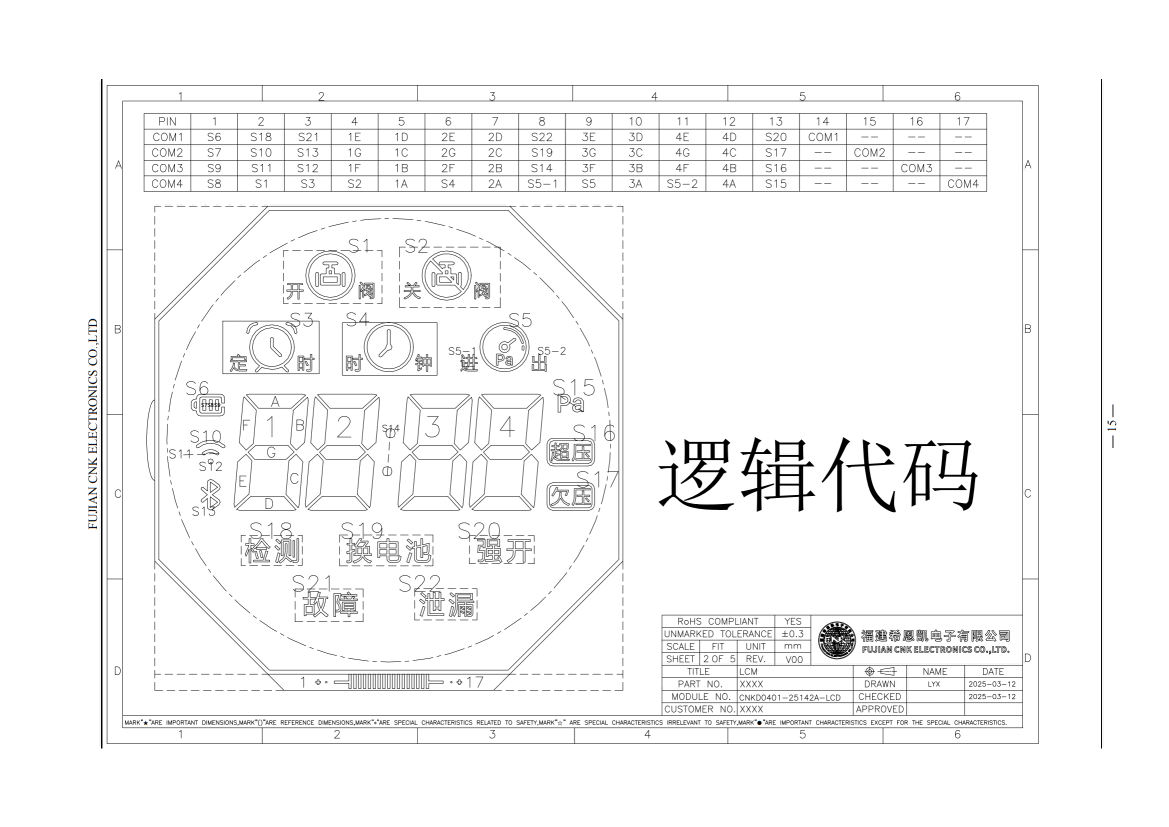

Drawing




General Specification


Type
HTN
Module Size(L*W*H)
58(L)*60(W)*2.8(H)mm
Mode
POSITIVE REFLECTIVE
Viewing Area(V.A.)(L*W)
55(L)* 55(W)mm
Viewing Direction
12 O’clock
temp. Operating
0~50°C
VOP
3V
temp. Storage
10 ~ -60°C
Driving Scheme
1/4 Duty, 1/3 Bias
High Temperature & High Humidity Storage
50°C/ 90%RH

Product Application


Industrial Equipment

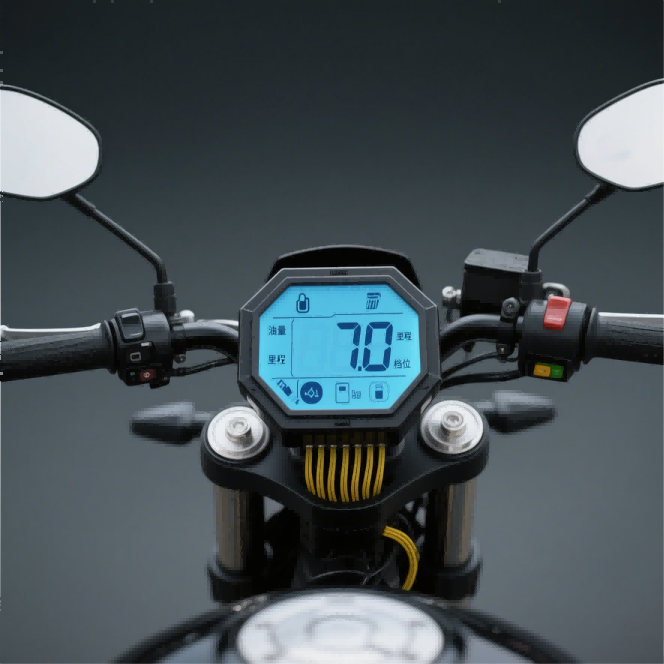

Two-wheeler

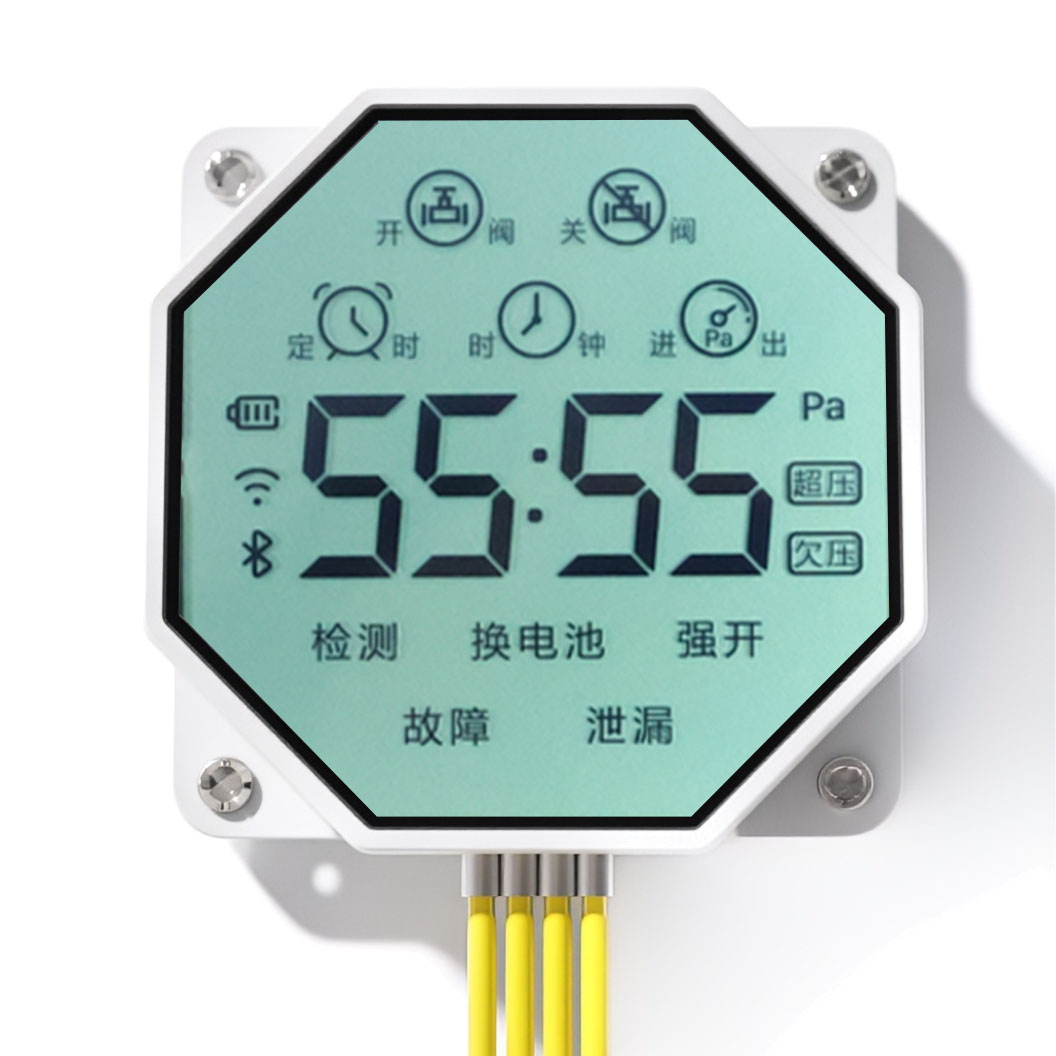

Water and electricity meters
