AI Robotic Pet: Technology-Enabled, Making Companionship Warmer

Product Overview

  The AI Robotic Pet is an emotional companion embodied robot powered by a multimodal large model. It deeply integrates advanced environmental perception technology and personified emotional expression, aiming to provide users with emotional value and warm companionship that goes beyond utilitarian functionality through subtle and perceptible emotional interactions.

I. Industrial Design and Appearance

The AI Robotic Pet adopts a bionic design philosophy, creating a tactilely comfortable and visually friendly appearance with high affinity.

Modular Exterior: Offers multiple skin color options and outfits to meet users' aesthetic and scenario-based needs.

Interactive Focus Design: Features a 4.28-inch LCD high-definition display as its "eyes," supporting dual-screen heterogeneous display, serving as the primary window for conveying core emotions and status information.

II. Core Features and Interactive Experience

The functional system of the AI Robotic Pet is built around a "perception-understanding-expression" closed loop, providing a comprehensive interactive experience.

1.Multimodal Context Perception

Voice Perception: Supports far-field voice recognition and directional pickup within a 5-meter range, accurately receiving commands and enabling free conversation.

Visual Perception: Utilizes a camera for static frame capture, enabling object, environment, and biological recognition.

Tactile Perception: Distributed touch sensors integrated into the head, back, and abdomen accurately distinguish interactive actions such as petting and tapping.

Status Perception: Built-in infrared sensors for biological activity detection and low-power wake-up; gravity sensors monitor body posture in real time, sensing falls, being picked up, and other status changes.

2.Intelligent Cognition and Data Processing

Cloud Brain: Connects to a multimodal large model platform, integrating voice, visual, and text information to achieve deep scene understanding and natural language dialogue generation.

Local Control: Integrates dialogue memory, character settings, and 300+ preset scenario reaction mechanisms to ensure low latency and high reliability in interactions.

3.Rich Emotional Expression and Output

Expression System: Preloaded with 20 finely crafted emotional expressions (e.g., joy, grievance, curiosity), dynamically displayed on the LCD eyes.

Motion System: Driven by dual stepper motors, enabling 90° left-right head rotation and 45° up-down arm movement to perform vivid body language such as waving and shaking its head.

Audio-Visual System: A 5W full-range speaker outputs high-quality sound effects matching emotions; a full-color LED light strip synchronizes changes to reinforce emotional state expression.

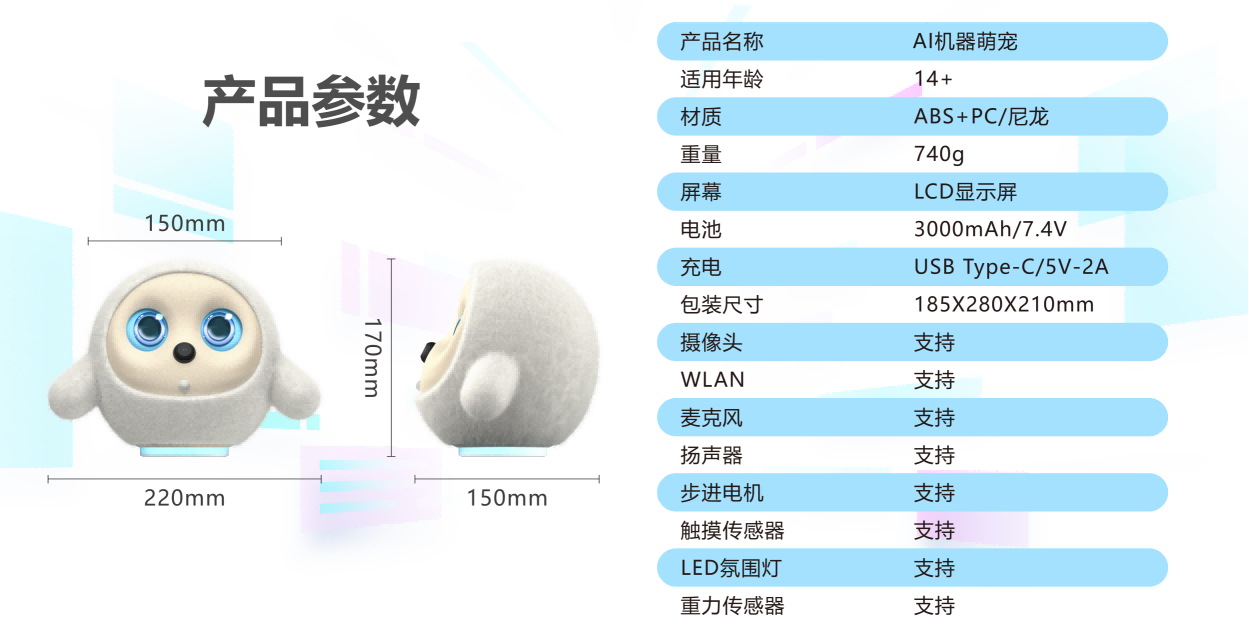

III. Hardware Architecture and Technical Foundation

The exceptional experience of the AI Robotic Pet is built on a solid hardware foundation.

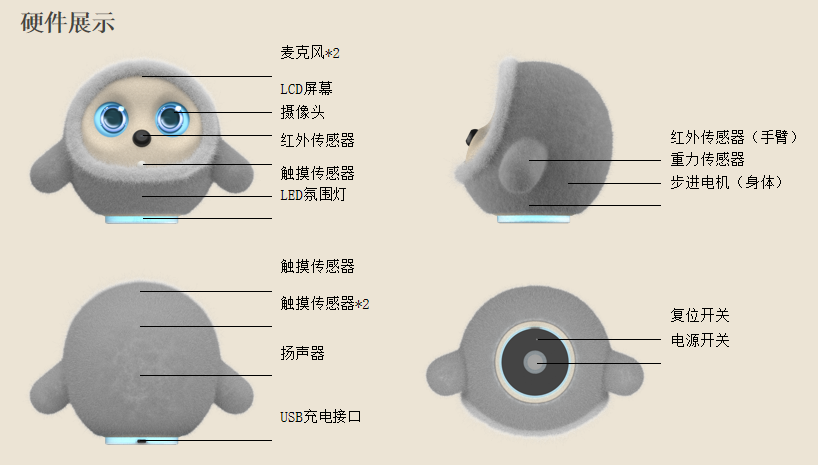

Environmental Perception Module: Microphone array, camera, infrared sensor, touch sensor, gravity sensor.

Human-Machine Interaction Module: 4.28-inch LCD expression screen, 5W full-range speaker, full-color LED light strip.

Motion Control Module: High-precision dual stepper motors for smooth, personified movements.

Data Processing and Communication Module: Main control chip (V821), 256MB NAND FLASH + 64MB DRAM storage unit, 2.4G Wi-Fi and Bluetooth module, ensuring efficient local processing and stable cloud connectivity.

Power and Battery Life: 3000mAh/7.2V lithium battery, supports Type-C fast charging, with a comprehensive battery life of 2 hours and a standby time of up to 2 days.

IV. Core Product Advantages

Compared to similar products on the market, the AI Robotic Pet boasts significant differentiating advantages:

1.Genuine Environmental Perception Capability: Integrates multi-sensor data to actively perceive user presence, environmental changes, and interaction intentions, rather than passively responding.

2.Rich Emotional Expression Ability: Through a three-dimensional output system of "screen expressions + anthropomorphic movements + audio-visual effects," it creates emotional feedback with a sense of life far beyond voice interaction.

3.Powerful Personalization Customization: Supports deep customization from appearance and voice tone to personality traits (e.g., sarcastic, cute, teacher-like), meeting users' personalized emotional needs.

4.Multi-Scenario Applicability: Not limited to home companionship, its functions such as greeting, interaction, and Q&A can seamlessly extend to commercial scenarios like retail, live streaming, and education, offering stronger practicality.

V. User Appeal and Value Proposition

The user journey of the AI Robotic Pet is meticulously designed to quickly establish emotional connections and provide sustained value.

Instant Appeal (3-7 seconds): With its excellent bionic appearance, small actions like idle dozing during standby, and surprising feedback during initial interactions, it quickly stimulates users' instincts and emotional interest.

Deep Interaction and Dependency: Through anthropomorphic scenarios such as petting interactions, playful banter, and sleeping together, users build deep emotional bonds with the product, forming long-term companionship dependency.

Sustained Sense of Surprise: Based on the AI large model's self-evolving dialogue capability and vast cloud content, it ensures interactions never run dry, providing continuous novelty.

Practical Functional Value: Combines practical tool attributes such as life assistance, multilingual translation, and knowledge popularization, making it an indispensable part of users' daily lives.

Conclusion

  The AI Robotic Pet represents a significant evolution in the field of companion robots. Through top-tier hardware configuration, powerful AI software platforms, and meticulous emotional design, it successfully transforms cold technology into a warm, lifelike entity. It is not just a product but a trustworthy partner dedicated to providing seamless emotional companionship and intelligent interaction for users worldwide.
