Driver Code Adaptation: The Precision Protocol for Stable Chinese LCD Displays

In the era of pervasive smart devices, the instantaneous activation and seamless shutdown of LCD displays are critical to user experience. Behind this lies a meticulously orchestrated driver code sequence—measured in milliseconds—serving as the invisible foundation for the reliability and longevity of Chinese LCD displays.

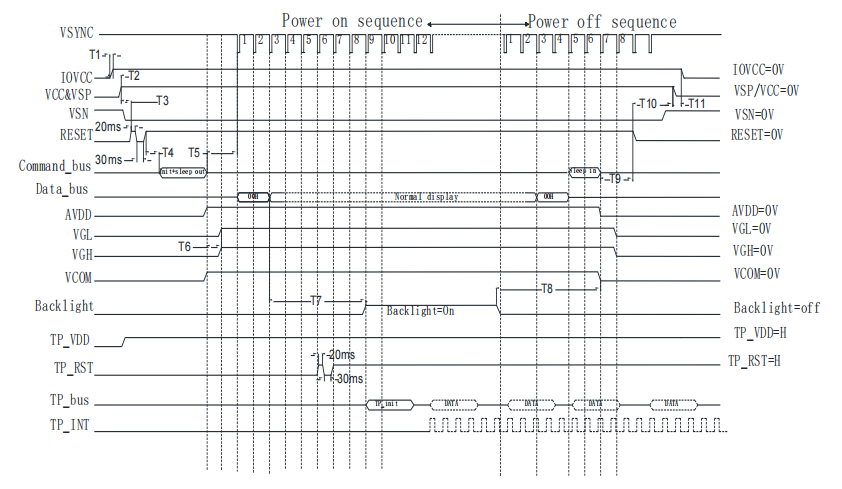

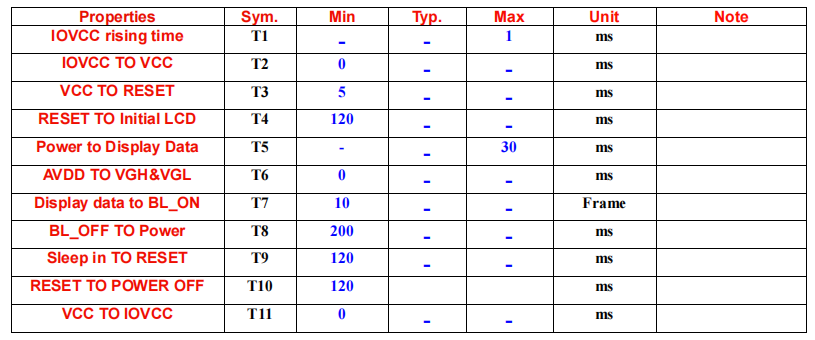

Precision Power-On Sequence: The Birth of Stable Display

1.Digital First (IOVCC Power-Up): Establish stable voltage for the logic control circuit, forming the "neural core" of the system.

1.Digital First (IOVCC Power-Up): Establish stable voltage for the logic control circuit, forming the "neural core" of the system.

2.Analog Enablement (VGH/VGL/AVDD/VCOM Power-Up): Activate high-voltage driving and analog power supplies, energizing liquid crystal molecular alignment and color generation.

3.Reset to Zero State: Issue a reset signal to clear the driver IC’s internal state, ensuring a flawless command execution baseline.

4.Stabilization Wait (Critical 120ms Delay): Allow internal clock oscillation and voltage circuits to self-stabilize—essential "preheating" before high-intensity operation.

5.Precision Calibration (Init Code + Optimized Delays): Execute initialization commands strictly per datasheet, embedding environment-tuned delays at critical nodes to guarantee register configuration integrity.

6.Display Activation (Display ON + Data Stream): Send the display enable command, initiating image data flow.

7.Final Touch (~30-Frame Backlight Delay): Illuminate backlight only after stable output of ~30 image frames, eliminating flicker/artifacts caused by power fluctuations. Ensures perfect visuals at first glance.

1.Light Extinguishment (Backlight OFF): Visually enter sleep mode.

2.Deep Sleep (Command Sequence 28h→10h + Delay): Issue display disable (28h) followed by deep sleep (10h) commands, allowing sufficient time for state preservation and charge dissipation.

3.Data Stream Termination: Halt image data transmission.

4.State Clearance (Secondary Reset): Fully reset driver IC to a defined state。

5.Power Stripping (Analog/High-Voltage Shutdown): Cut off core power rails (VGH/VGL/AVDD, etc.).

6.Logic Silence (IOVCC Disconnect): Terminate digital logic power last, eradicating residual charge risks.

1.Millisecond Precision: Timing accuracy eradicates power-on artifacts (flicker, ghosting, snow), defining premium display standards.

2.Lifespan Preservation: Scientific power sequencing reduces electrical stress impacts by ≤30%, significantly extending LCD display service life.

3.Experience Engineering: Seamless activation/shutdown underpins user trust and brand reputation.

4.Supply Chain Enabler: Advanced driver adaptation ensures efficient synergy between driver ICs, panels, and end-devices—accelerating technological autonomy for Chinese LCD displays.

Driver code adaptation is a precise science integrating electronics, algorithms, and deep understanding of LCD display physics. Operating silently behind every screen, its millisecond-level timing protocols inject stability into China’s display ecosystem—guaranteeing excellence from first-frame illumination to final-pixel rest. Mastering this discipline is key to achieving technological self-reliance and superior performance in the global display arena.
