Is Your LCD Screen Showing Odd Colors? 3-Step Diagnosis Guide!

When industrial equipment displays suddenly turn blueish, reddish, or show distorted colors, it’s not just an operational nuisance—it could signal underlying hardware or signal transmission issues.

  In critical fields like power monitoring, medical devices, or automotive systems, display accuracy is vital for safety and efficiency. Don’t panic when colors go rogue; systematic troubleshooting is key!

Step 1: Simplify with Grayscale – Isolate the Issue!

  Start by stripping away color complexity. Display pure black-and-white content. If you spot abnormal patches, streaks, uneven backlighting, or localized dimming/brightening, the problem likely points to physical damage (e.g., pressure marks, dead pixels), backlight failure, or unstable driving voltage. This step quickly identifies whether it’s a "hardware injury" or a deeper "color symptom."

Step 2: Primary Color Check – Pinpoint Faulty Channels!

  If grayscale appears normal, focus shifts to signal processing. Conduct individual red, green, and blue tests. Display full-screen pure red, green, and blue sequentially. Observe carefully: Is any color missing? Abnormally dim? Or showing unexpected tints? For example, pink/yellow spots during a red test indicate issues like damaged sub-pixel circuits, loose FPC flex cables, or faulty color-channel outputs in the driver IC. This "color triage" precisely locates the root cause.

Step 3: Decode the Order – Match RGB/BGR Settings!

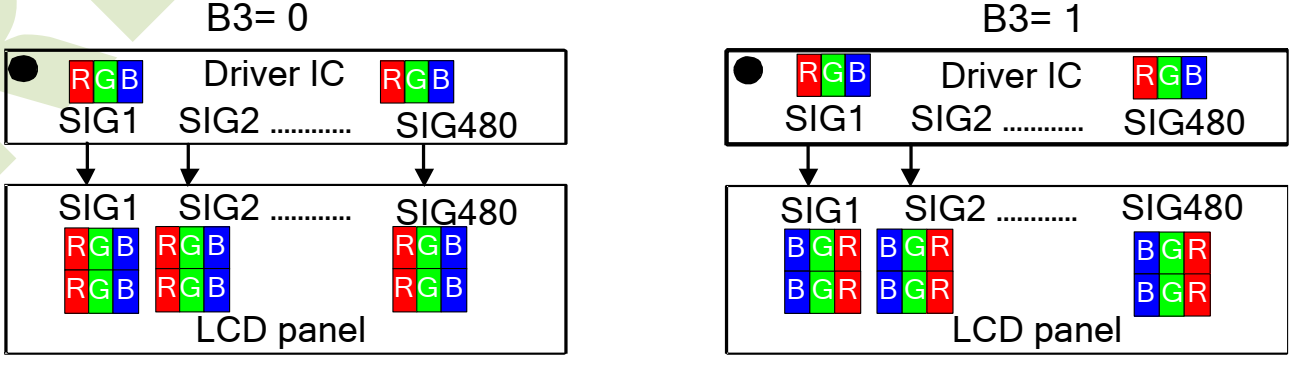

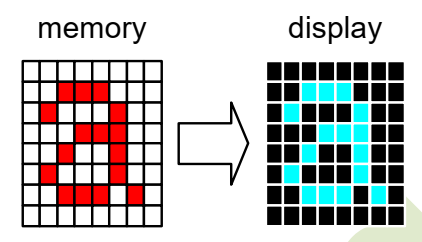

  If issues persist, the culprit may lie in hardware-software communication protocols—specifically, color data order! LCD screens may use RGB or BGR subpixel arrangements. If your mainboard (MCU/SoC) outputs data in RGB order while the LCD screen defaults to BGR (or vice-versa), colors will invert entirely (e.g., red becomes blue)! Always cross-check screen specs with platform driver settings, ensuring Color Format or Pixel Order aligns perfectly. This step bridges the "color language gap," restoring accurate visuals.
