Dot matrix LCD displays from China CNK manufacturer are commonly used in various applications where flexibility in displaying content is required, such as in electronic instrumentation, industrial control panels, consumer electronics, and signage. They offer advantages over character LCD displays by providing the ability to display custom graphics and symbols rather than being limited to predefined characters.
Here are some key features dot matrix LCD displays:
Resolution: Dot matrix displays come in various resolutions, typically denoted by the number of rows and columns of pixels. Higher resolution displays have more pixels and can display more detailed images or text.
Interface: Dot matrix displays can be interfaced with microcontrollers or other electronic devices using parallel interfaces (e.g., using multiple data lines for pixel control) or serial interfaces (e.g., SPI or I2C). The choice of interface depends on the specific display module and the requirements of the application.
Controller: Dot matrix displays often include a controller chip that simplifies the process of interfacing with the display and controlling individual pixels. Common controller chips include the KS0108 and ST7920.
Backlight: Many dot matrix LCD displays feature a backlight for improved visibility in low-light conditions. The backlight may be white, colored, or RGB (allowing for color mixing).
Customization: One of the key advantages of dot matrix LCD displays is their ability to display custom graphics and symbols. This allows for highly customizable user interfaces and graphical representations of data.
Porduct Dateils

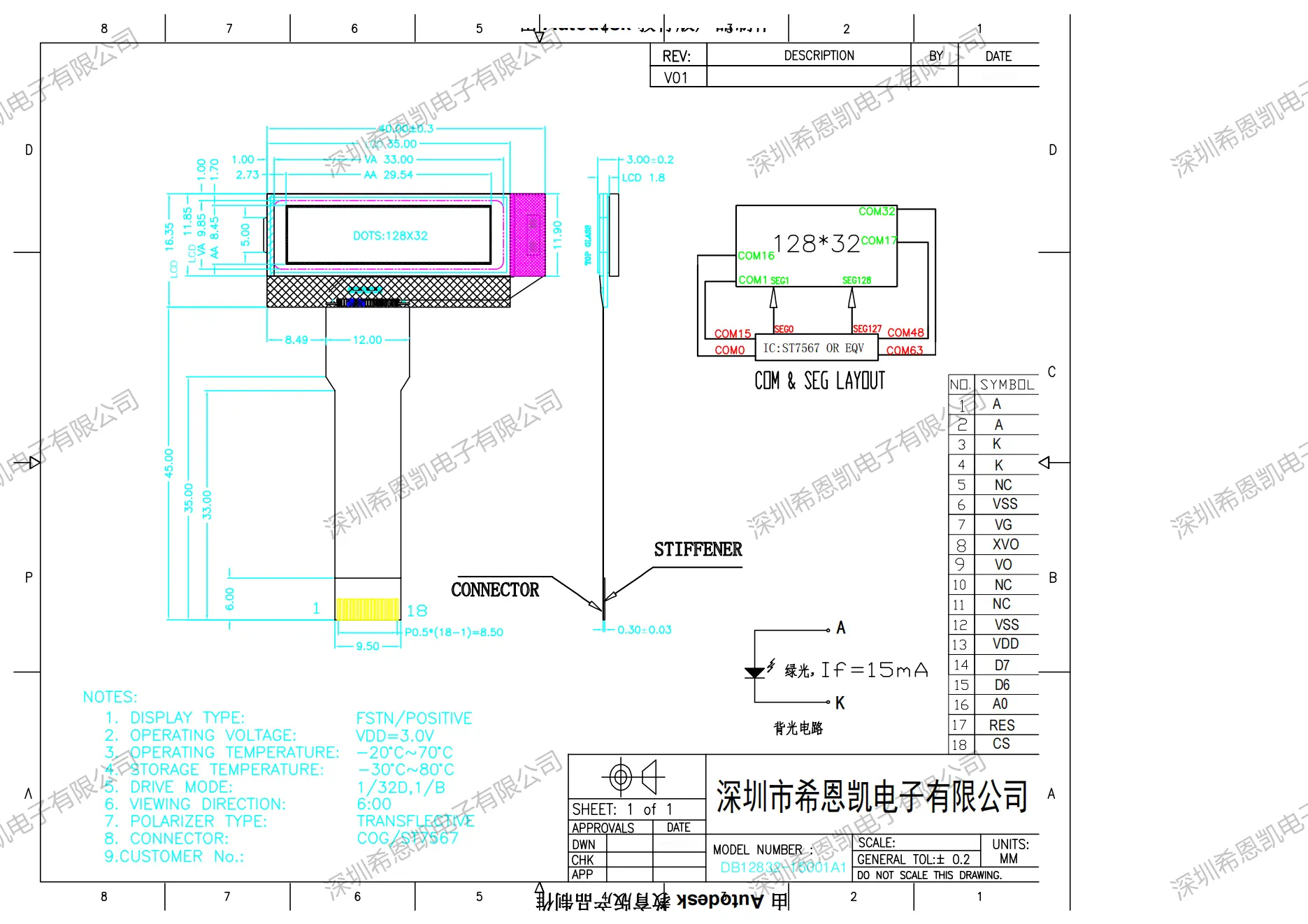

Mechanical Drawing
