Master PORCH Settings to Unlock LCD Performance and Stability – Key Considerations for Hardware Design

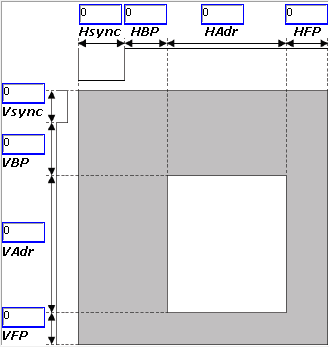

In the hardware design of LCD screens and related LCD modules, precise configuration of timing parameters is fundamental to achieving optimal display performance and system stability. Among these, PORCH (blanking interval) settings are particularly critical—they define the exact boundaries of the pixel clock (PCLK), horizontal/vertical sync signals (Hsync/Vsync), front/back porches (HBP/HFP, VBP/VFP), and the active pixel area (HAdr/VAdr). As a professional LCD display manufacturer, CNK Electronics (CNK) emphasizes the importance of clarifying these parameter requirements during the initial selection phase. This ensures compatibility between the driver IC and glass substrate timing, avoiding costly design revisions later.

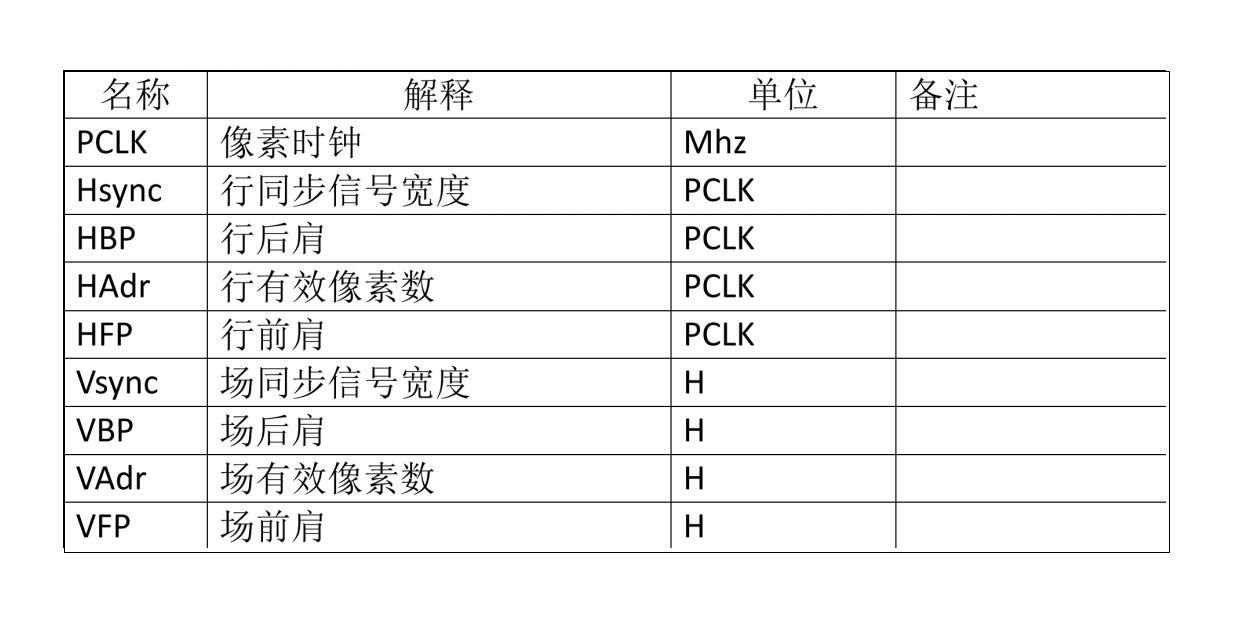

PORCH parameters are far from arbitrary numbers—they directly dictate core display performance. The PCLK frequency, calculated as PCLK = (Hsync + HBP + HAdr + HFP) × (Vsync + VBP + VAdr + VFP) × Frame Rate, directly reflects the system’s bandwidth requirements. The refresh rate (typically starting at 60Hz, with high-refresh-rate displays reaching up to 144Hz) is limited by the charging/discharging capabilities of the glass and IC. Too low a refresh rate causes screen flicker, compromising visual comfort. Therefore, hardware designs must reserve sufficient timing margin (especially HFP/VFP) to ensure stable signal transmission even in high-resolution or high-refresh customize LCD applications.

  The interface type directly impacts refresh rate validation and debugging strategies. For RGB interfaces, engineers can directly measure the Vsync signal period to calculate the actual refresh rate. For mainstream LCD modules with MIPI interfaces, specific commands must be sent (e.g., PAGE 0 R35H=0X00), followed by measurement via the TE pin. Hardware designs should reserve key test points (e.g., Vsync, TE) and ensure high-quality signal routing to prevent interference that could cause measurement errors or display anomalies (e.g., tearing, flickering).

  Successful LCD screen integration relies on deep collaboration with experienced LCD display manufacturers. Especially for customize LCD projects or complex LCD module applications, CNK Electronics (CNK) advises: Share target PORCH parameters and driver solutions early, obtaining the manufacturer’s glass timing profiles and configuration recommendations. This prevents signal conflicts, power irregularities, or EMC issues. CNK’s technical team offers end-to-end support—from PORCH optimization and interface matching to signal integrity analysis—ensuring your hardware design succeeds on the first try and unleashes the full performance and reliability of display modules.

  CNK Electronics — Mastering Timing Parameters, Empowering Your Visual Innovation with Professional Display Technology.
