LCM Conductive Elastomer Connectors: The "Flexible Bridge" for Precision Electronic Connections

Between the Liquid Crystal Display (LCM) module and the Printed Circuit Board (PCB) lies an invisible yet vital "information highway" – the LCM Conductive Elastomer Connector, commonly known as the "Zebra Strip". With its unique structure and outstanding performance, it serves as the cornerstone for stable and efficient connections in modern electronic devices.

Intricate Structure, Stable Transmission

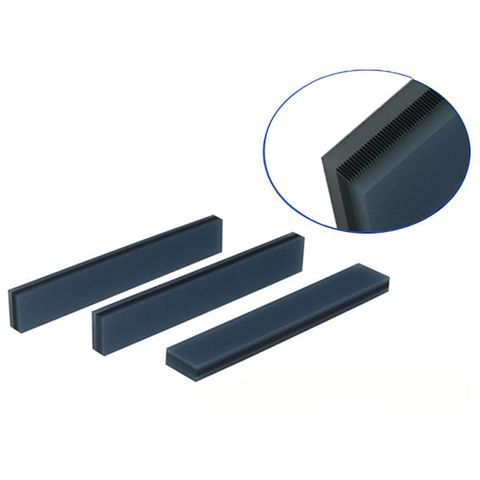

This is no ordinary strip. It features a precise, alternating layered structure of conductive silicone rubber and insulating silicone rubber, cured into form. This creates countless parallel, precisely spaced conductive channels (resembling zebra stripes). This design enables it to perfectly handle current and signal transmission between the LCD and PCB, while offering the inherent vibration resistance and deformation resilience of rubber materials, ensuring long-term, stable, and reliable connections.

Efficient Assembly, Cost Optimization

Compared to soldering or pin connectors, assembling with conductive elastomer connectors is akin to "one-click connection" – requiring only precise placement and the application of appropriate pressure. This greatly simplifies production processes, enhances automation and production efficiency, and significantly reduces assembly costs, making it the ideal choice for mass manufacturing.

Key Selection Criteria: Parameters Dictate Success

To fully leverage its performance, precise selection is crucial:

The Two Material Champions:

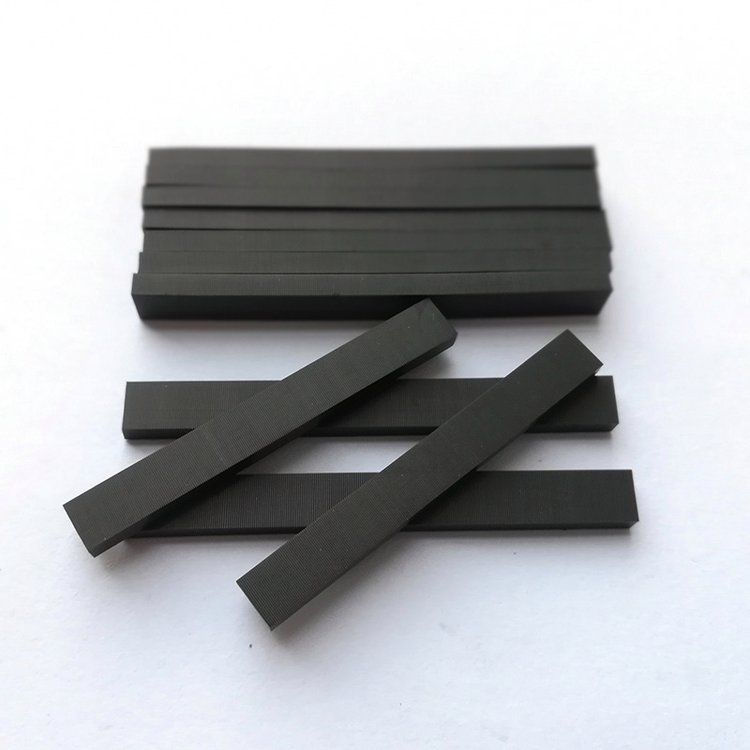

Solid Silicone: The economical choice. Moderate elasticity (hardness 35°~45°). Requires attention to anti-static measures and deformation prevention during shipping.

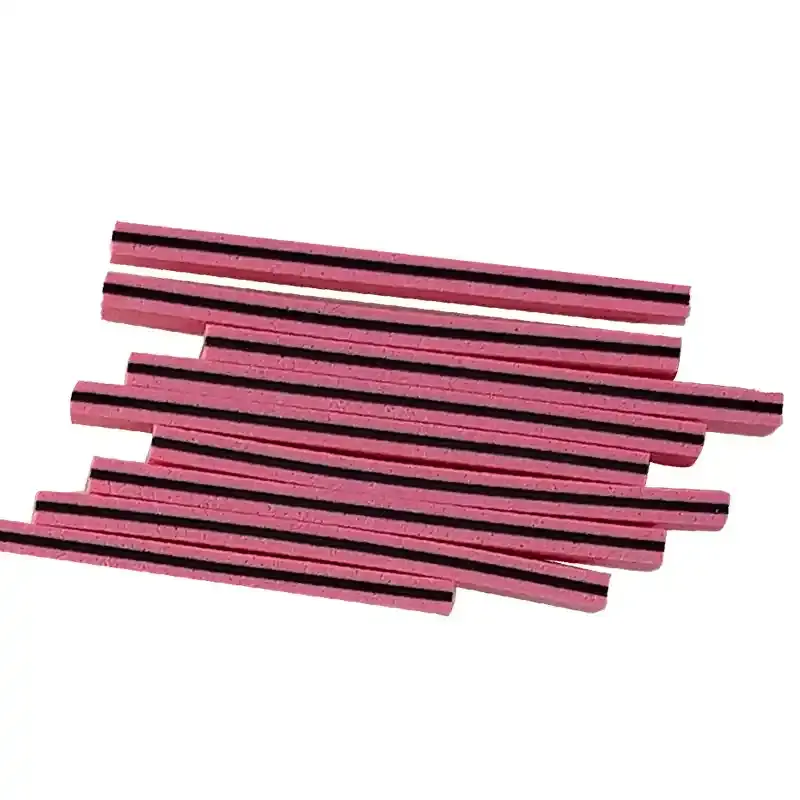

Foamed Silicone (Foam Rubber): Soft and contamination-resistant (hardness 20°~30°). Excellent deformation resistance. Requires emphasis on moisture protection. (The core conductive carbon layer hardness for both is 65°~75°).

Core Dimensional & Electrical Parameters:

Pitch (0.05/0.1/0.18mm): The Golden Rule! Ensure each PCB pad is covered by at least 3 conductive layers (4-5 layers recommended for 0.05mm pitch). This is the foundation for signal integrity.

Conductive Layer Width (0.4~1.0mm): Affects the overall connector hardness and height design. General rule: Connector width ≤2.0mm pairs with 0.6mm conductive layer; ≥2.0mm pairs with 0.8mm.

Tilt Angle (Conductive Layer Inclination): Typically controlled to ≤2°.

Height (Critical!): Calculation formula: Connector Height = h × (1 + Compression Ratio). h is the theoretical gap between the LCD step underside and the PCB top surface after assembly (h = PCB Surface Height - Metal Frame Thickness - Rib Height - LCD ITO Thickness).

Compression Ratio (Lifeline!): Strictly maintain 10%~15%! Below 10% risks poor contact and unstable impedance; above 15% can crush the connector or warp the PCB, causing assembly failures or damage.

Electrical Performance: Conductive layer resistivity must be extremely low (e.g., YET type ≤1.1 Ω·cm), and insulating layer resistivity extremely high (≥10^12 Ω·cm), ensuring efficient conduction and perfect isolation.

Wide Applications, Ubiquitous Presence

From pocket calculators, smart meters, and medical monitor screens, to automotive displays, industrial control interfaces, and communication devices, LCM conductive elastomer connectors, with their compact size, high reliability, and easy assembly, serve as the "unsung heroes" lighting up displays in countless electronic devices.

Conclusion

A small Zebra Strip carries significant connections. Deeply understanding its material properties and precisely controlling key parameters (especially the Pitch coverage rule, Compression Ratio range, and Height calculation) is central to ensuring stable display performance and long-term operation of electronic devices. Choose a professional and reliable conductive elastomer connector solution to infuse stability into your precision electronic connections!
