RGB Interface Design: The Gateway to High-Efficiency Display in Custom LCD Screens

  In modern display technology, the RGB interface stands as a mainstream solution for driving LCD screens—especially high-performance displays like TFT—thanks to its ability to transmit full-color image data at high speeds. As an experienced custom LCD display manufacturer, CNK Electronics (CNK) understands how critically RGB interface design impacts display quality. Its core lies in precise synchronization signal polarity matching and timing parameter configuration, which form the technical cornerstone for stable, smooth visuals and rich, authentic colors.

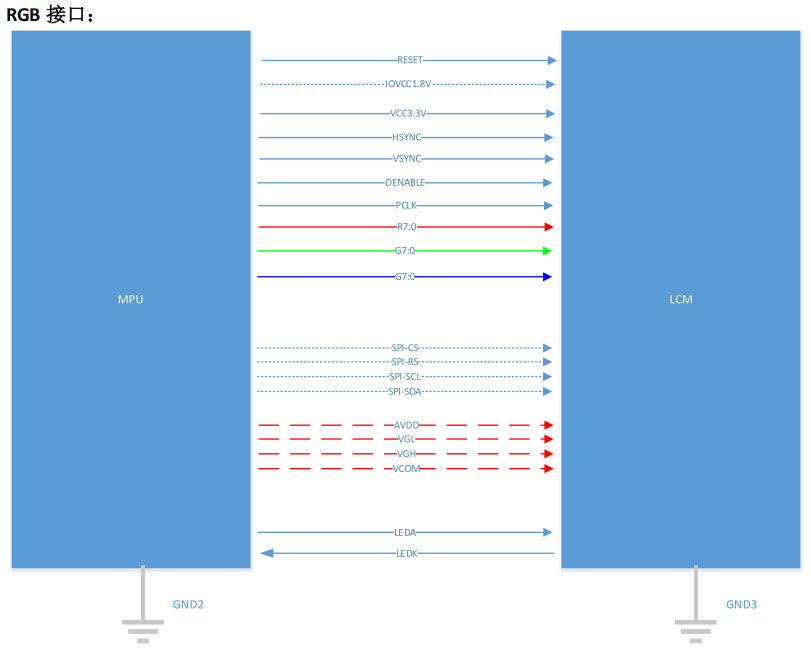

Dual-Mode Operation, Flexible CompatibilityThe RGB interface primarily offers two efficient working modes:

DEN Mode (Data Enable Priority): Here, the ENABLE signal is key for controlling the data valid window. The phase of the PCLK clock signal (rising edge transmission/falling edge latching) must strictly synchronize with the LCD module; otherwise, screen corruption may occur. Parallel data transmission through red (R7~R0), green (G7~G0), and blue (B7~B0) 8-bit lines collaboratively delivers 16.77 million colors. HSYNC and VSYNC can be simplified in this mode.

SYNC Mode (Synchronization Signal Priority): This mode relies on precise HSYNC (horizontal sync) and VSYNC (vertical sync) signals to define the active display area. Their active states (typically high-effective) must align with the driving platform; otherwise, misalignment or even blank screens may result. PCLK phase synchronization remains critical, with R/G/B data transmission identical to DEN mode.

Design Essentials: Success Lies in the DetailsTwo critical points demand vigilance in RGB interface design:

1.Data Line Sequence Confirmation: When a screen’s interface uses generic labels like DB0-DB24, it is essential to confirm the exact RGB signal arrangement within the bus with the LCD module supplier. Incorrect ordering causes severe color distortion.

2.Clear Functional Boundaries: A pure RGB interface is a high-speed "one-way display data channel" incapable of transmitting initialization commands or reading status. Thus, in custom LCD projects, it often collaborates with control interfaces like SPI, which handle screen initialization and management.

  As a professional custom LCD display manufacturer, We recognize how subtle timing variations and precise signal polarity matching determine the stability of LCD screens. Partner with CNK for end-to-end technical support—from interface specification analysis and design guidance to custom LCD development—ensuring your display solutions shine with precision in the world of high-speed, full-color visuals.
