Exquisite Coordination in Interface Configuration, CNK Backlight Enhances Superb Visuals

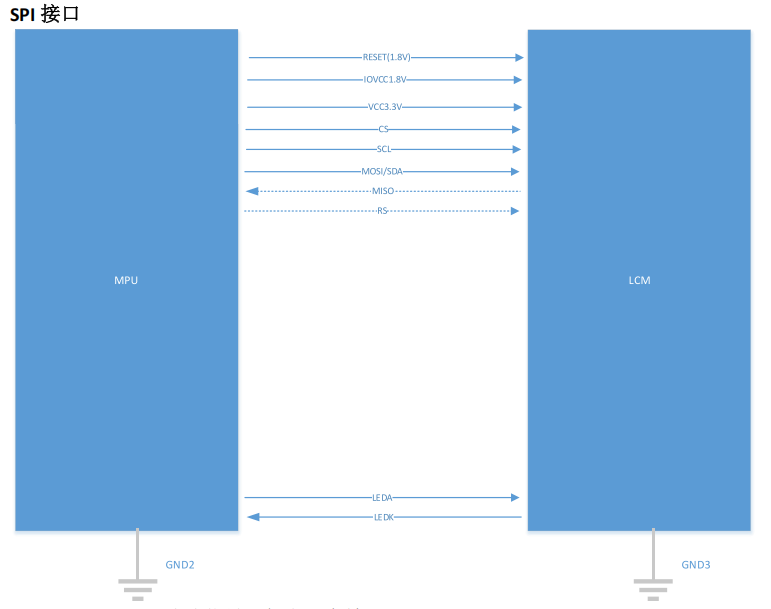

1. Optimal Choice for Small Screens & Low Power: SPI Interface Synergy with Efficient Backlight

  For LCD Display OEMs, selecting the SPI interface for small, low-resolution TFT Displays is a strategic decision. Its simple structure, coupled with a recommended rate ≤50MHz and DMA transfer, effectively reduces system load. This low-bandwidth characteristic necessitates that the accompanying backlight driver circuit design prioritizes high efficiency and low power consumption. This ensures that the LCD Module delivers clear, uniform backlight illumination even with minimal resource usage, meeting the long battery life requirements of portable devices.

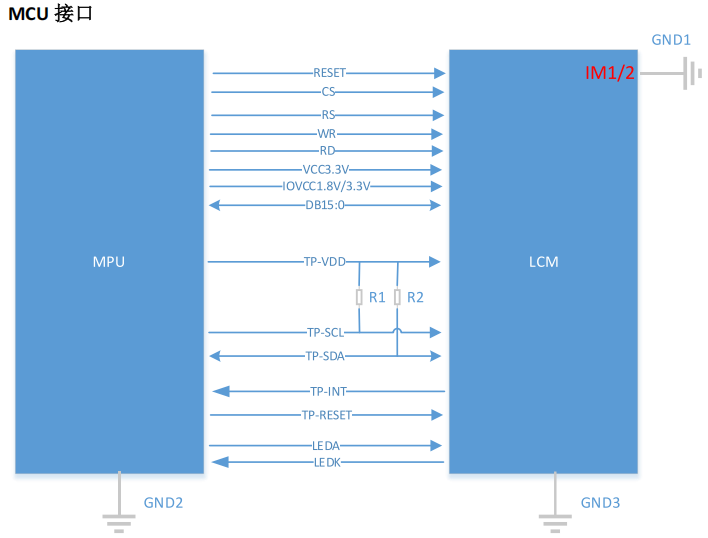

2. Core for Medium-Speed Control: MCU Interface & Stable Backlight Assurance

  In medium-to-low speed applications like industrial instruments and home appliance panels, the MCU interface is popular due to its flexible support for 8/16/18-bit modes. Precise timing control of signals like CS, WR, and RD is critical. This places higher demands on the LCD Module's backlight system: it must possess excellent anti-interference capability and stability. This guarantees constant, flicker-free backlight brightness on the TFT Display during various signal transitions, ensuring consistently reliable image display.

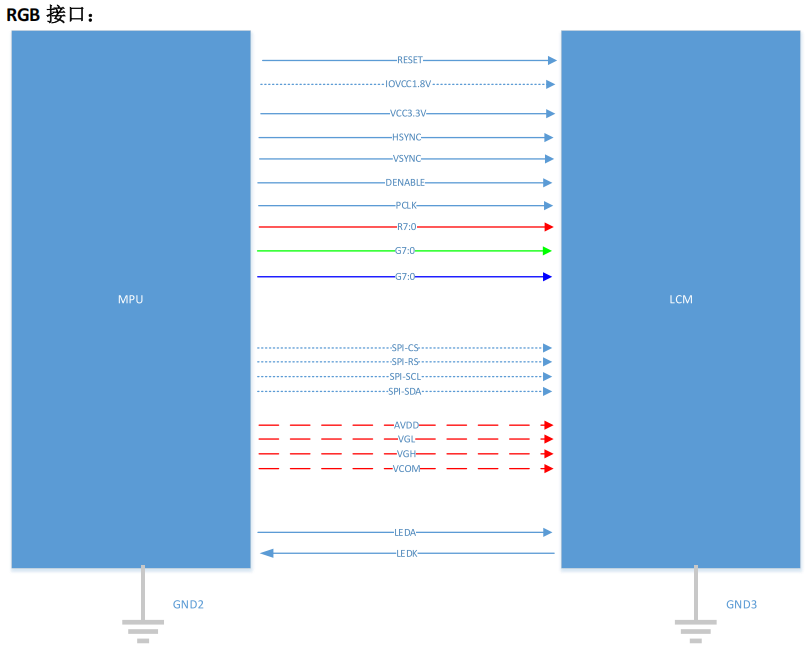

3. High-Speed Full-Color Rendering: RGB Interface & Precise Backlight Matching

  LCD Display OEMs pursuing high-speed, full-color displays often favor the parallel high-speed transmission capability of the RGB interface. Its strict synchronization signal polarities (e.g., HSYNC, VSYNC) and precise timing parameters (e.g., HBP, HFP, VBP, VFP) are fundamental for smooth, tear-free images. CNK Electronics deeply understands that this must be meticulously coordinated with the high-brightness, high-uniformity backlight system of the LCD Module. Precise backlight driving timing synchronized with the RGB data stream is essential to eliminate motion blur at high refresh rates, ensuring vivid, saturated colors and delivering trustworthy visual experiences for industrial HMIs, medical equipment, and more.

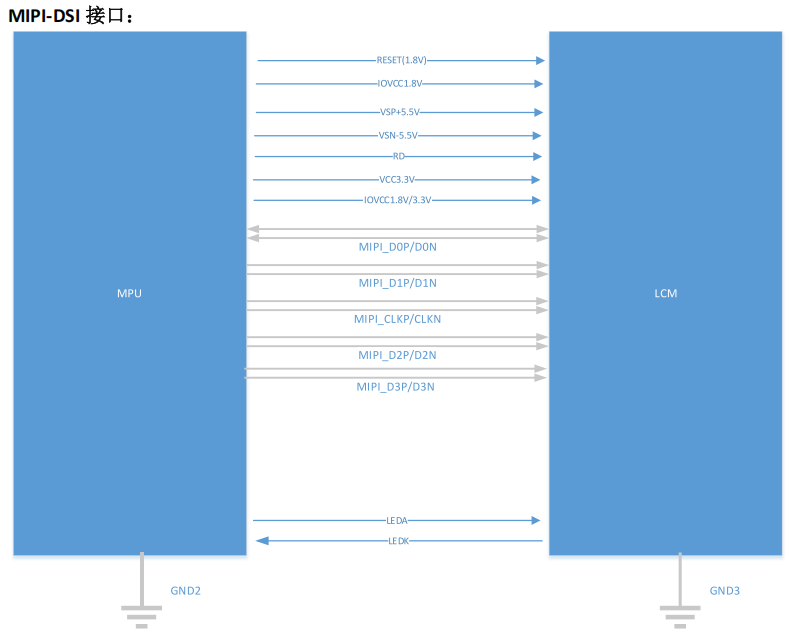

4. Cutting-Edge Display Engine: MIPI/LVDS Interfaces & High-Performance Backlight Driving

  For mobile device high-resolution screens or industrial large panels, MIPI and LVDS interfaces represent top-tier performance. MIPI's differential signaling (100Ω impedance), LP/HS mode switching, and shielding requirements, along with LVDS's stringent differential pair length matching (±5mm) and common-mode voltage range (0.9-1.3V), pose rigorous challenges to the LCD Module's integration level, heat dissipation, and noise immunity. CNK has developed ultra-thin, high-efficiency, and highly environmentally adaptable backlight solutions specifically for these demands. Whether addressing the spatial constraints and thermal management required by MIPI or meeting LVDS's demands for longevity and wide voltage adaptability in harsh industrial environments, CNK's backlight technology ensures that TFT Displays remain brilliantly clear and visually stunning even under extreme conditions.

CNK: The Master of Harmonizing Interface & Backlight Technology

  CNK Electronics Co., Ltd. profoundly understands the symbiotic relationship between interface configuration and backlight design. We provide LCD Display OEMs with comprehensive TFT Display and LCD Module solutions covering all interface types – SPI, MCU, RGB, MIPI, and LVDS. Leveraging our mastery of core backlight technologies, CNK ensures every screen achieves perfection in brightness, uniformity, color temperature, and response speed, transforming high-speed interface data streams into exceptional visual experiences for the end-user. Choosing CNK means selecting the harmonious interplay of interface performance and backlight quality.

About CNK

  Founded in Shenzhen in 2010, CNK Electronics (CNK in brief) expanded the world leading factory in Longyan, Fujian in 2019. It is a specialized and innovative enterprise specializing in the design, development, production and sales of display products. CNK provides customers with a full range of cost-effective small and medium-sized display modules, solutions, and services with excellent quality worldwide. Oriented in technology and high quality, CNK keeps sustainable development, works to offer customers  better and stable services.
