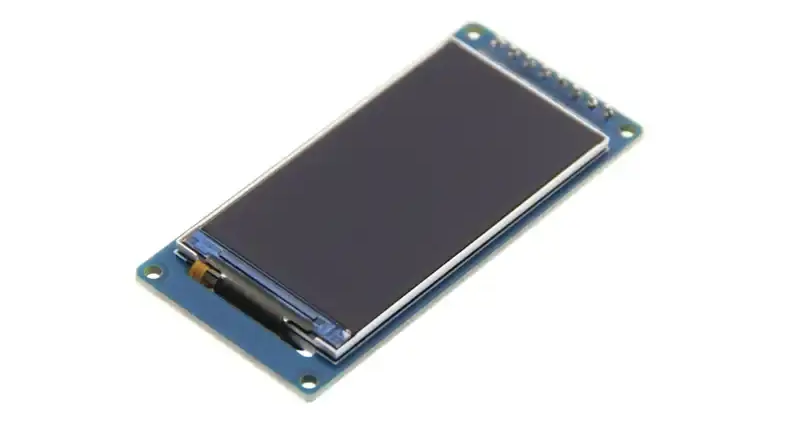

CNK Technical Decryption: 4-Step Diagnosis for LCD Screen "No Display" Failures

CNK Electronics Co., Ltd, a specialized and sophisticated enterprise in display devices and HMI products since 2010, serves mission-critical industries including medical, automotive, and power systems.

  Field data reveals that LCD screen failures causing sudden "no display" often originate from hardware mismatches (80% occurrence) or software command errors – core focus areas for CNK engineers.

Systematic Hardware Diagnosis：

When encountering LCD screen blackout, execute comprehensive hardware verification:

Check abnormal heating at display IC areas

Verify supply voltage strictly complies with datasheet specifications

Validate RESET signal: Low-level triggers reset; High-level must stabilize at 1.8V (3.3V misconnection causes reverse current flow leading to black screen)

Confirm physical compatibility between display/mainboard interfaces (critical for SPI 3-wire/4-wire modes and MIPI channel configuration)

Capture clock signals via logic analyzer to ensure timing compliance

Software Command & Customization Solutions：

If hardware checks pass, proceed to software-layer diagnosis:

Capture initialization codes using logic analyzer to verify programming accuracy

Send BIST commands to confirm valid instruction reception

Ensure mandatory PASSWORD authorization precedes initialization

For high-risk scenarios, CNK's customize LCD services preempt failures:

Pre-burn SPI/MIPI protocol-matched drivers

Enhance anti-interference design in medical/automotive LCD modules

Full-Cycle Technical Assurance：

Leveraging dual-operation bases in Fujian (manufacturing) and Shenzhen (R&D), CNK implements lifecycle quality control:

Support: Remote logic analyzer diagnostics by engineering teams

Customization: Voltage redundancy protection for RESET signals in customize LCD solutions

CNK's commitment: Ensuring every frame remains reliably visible in industrial intelligence.
