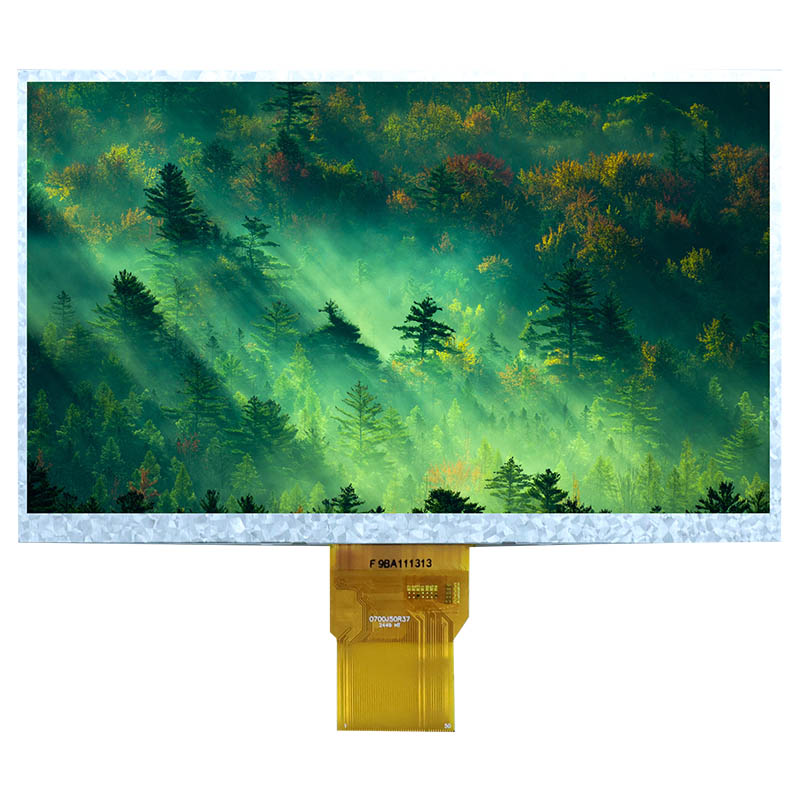

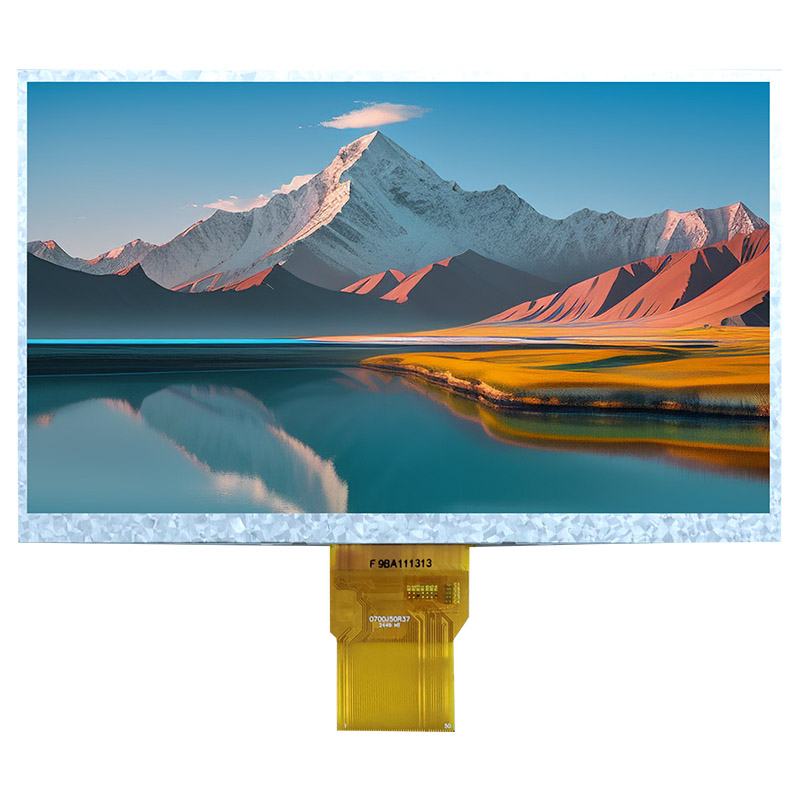

7" TFT Display

7" TFT LCD Display, CNKT0700-24801A1, single IC advantage product, using IPS panel, full viewing angle advantage, operating temperature is -20℃~70℃, storage temperature is -30℃~80℃, IC used is JD9165A, interface is RGB 24Bit, this product is a single IC advantage product, cost-effective, can be used in drones, industrial equipment, medical equipment, etc. If you need it, please contact us~

Model:CNKT0700-24801A1

Send Inquiry

Product Description

Rest assured that when you choose CNK 7" TFT LCD Display from our factory, you're investing in reliability, performance, and customer satisfaction. We look forward to serving you and contributing to the success of your projects.

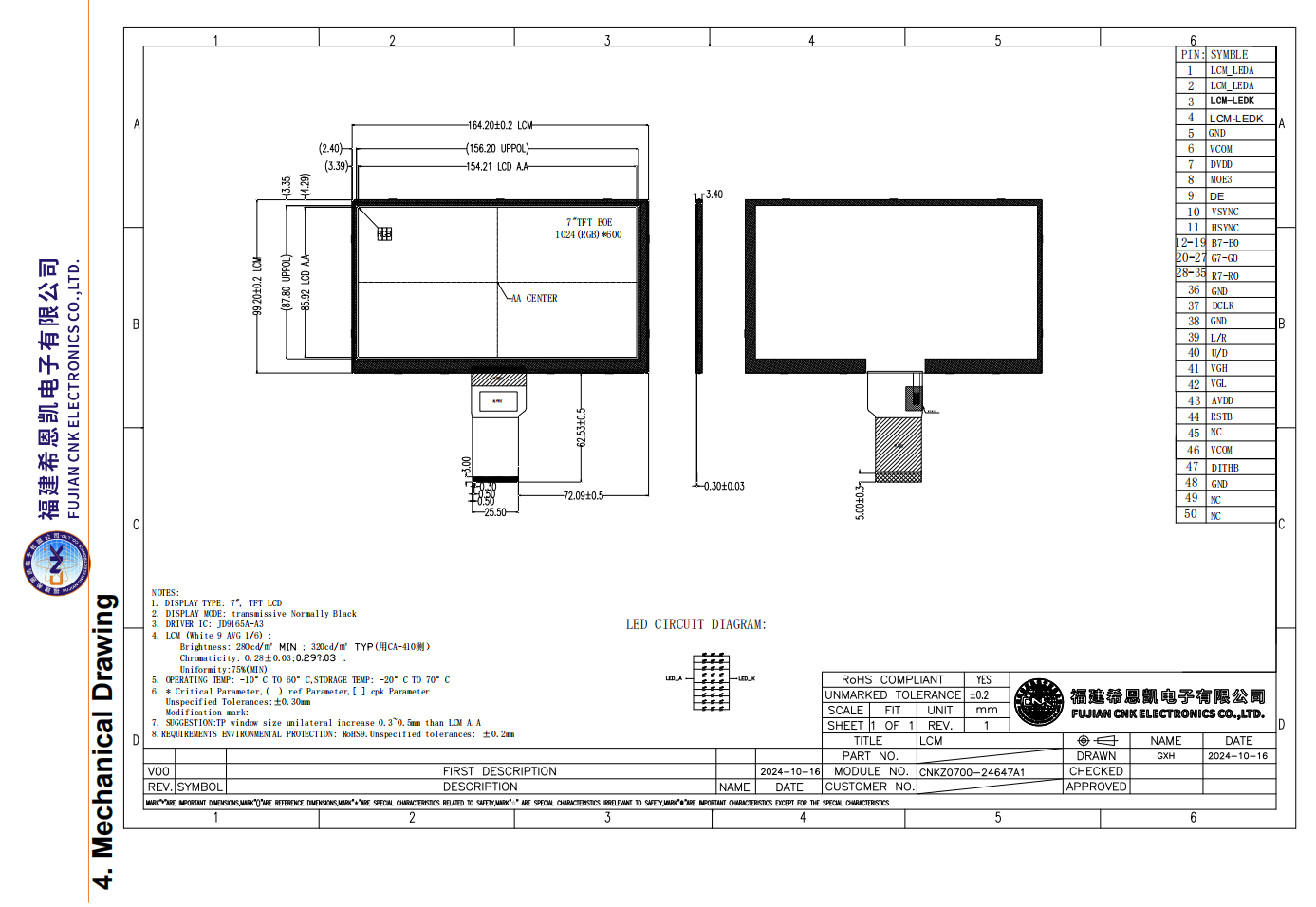

Drawing

General Specification

Panel Type	IPS	Resolution	1024(RGB)*600px
Viewing Direction	ALL	Module Size	164.2099.203.40 mm
Active Area	154.21*85.92mm	Driver IC	JD9165A
Operation temperature	-20℃~70℃	Storage temperature	-30℃~80℃
Interface	RGB 24Bit	Weight	YBD

Product Application

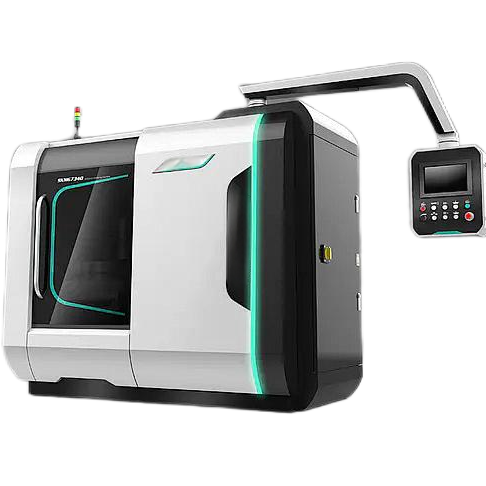

Industrial Equipment

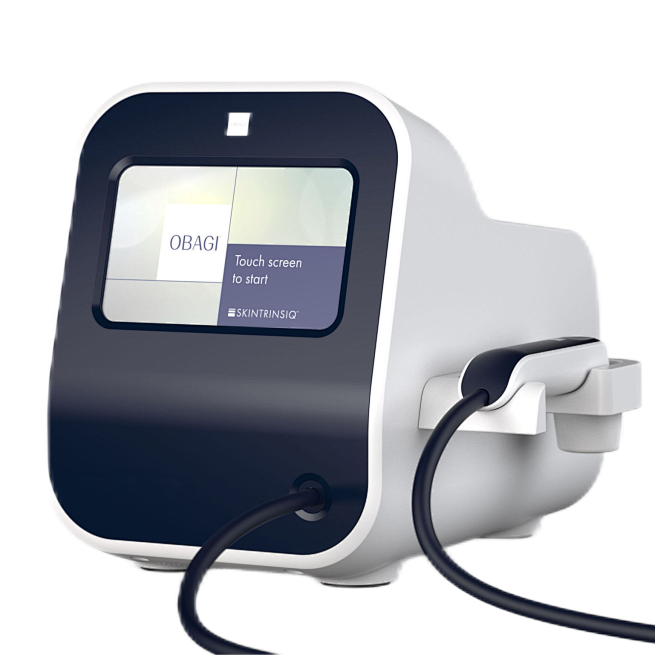

Medical Equipment

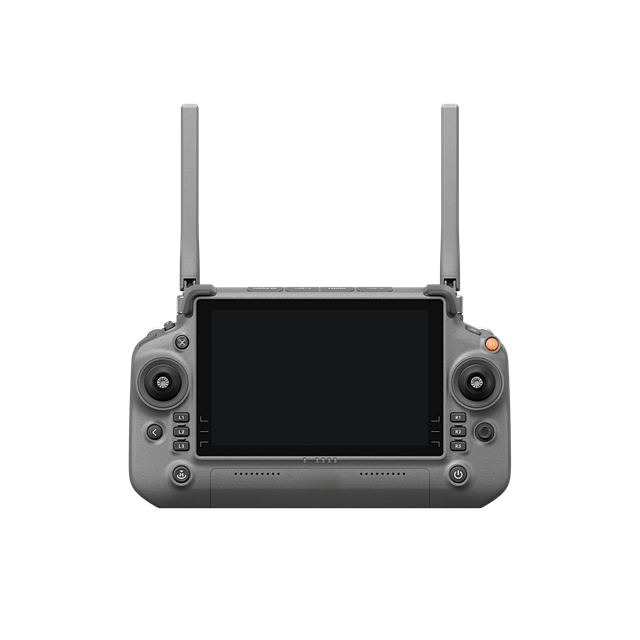

Drones
