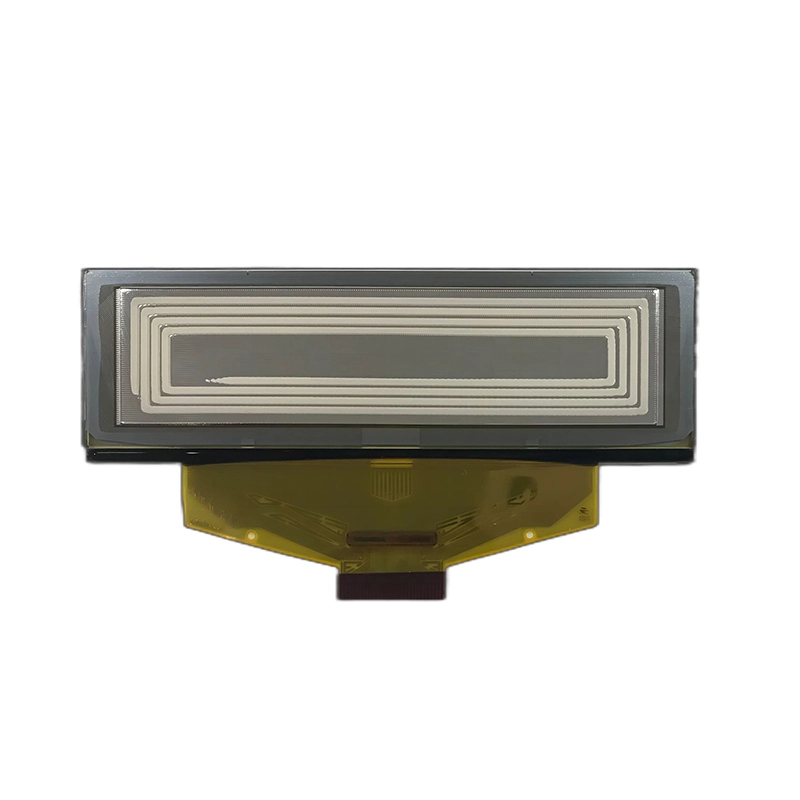

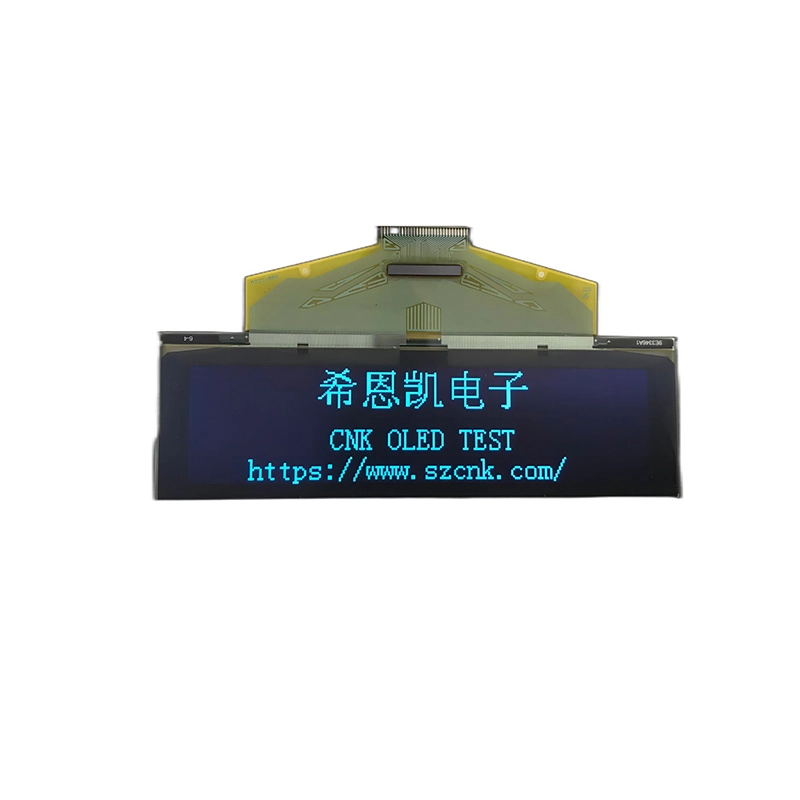

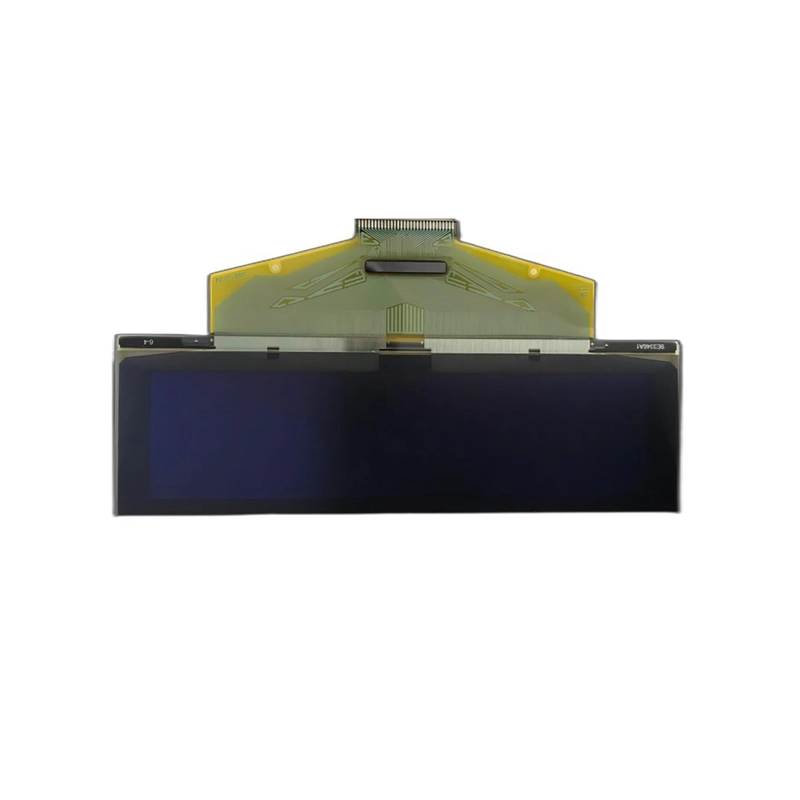

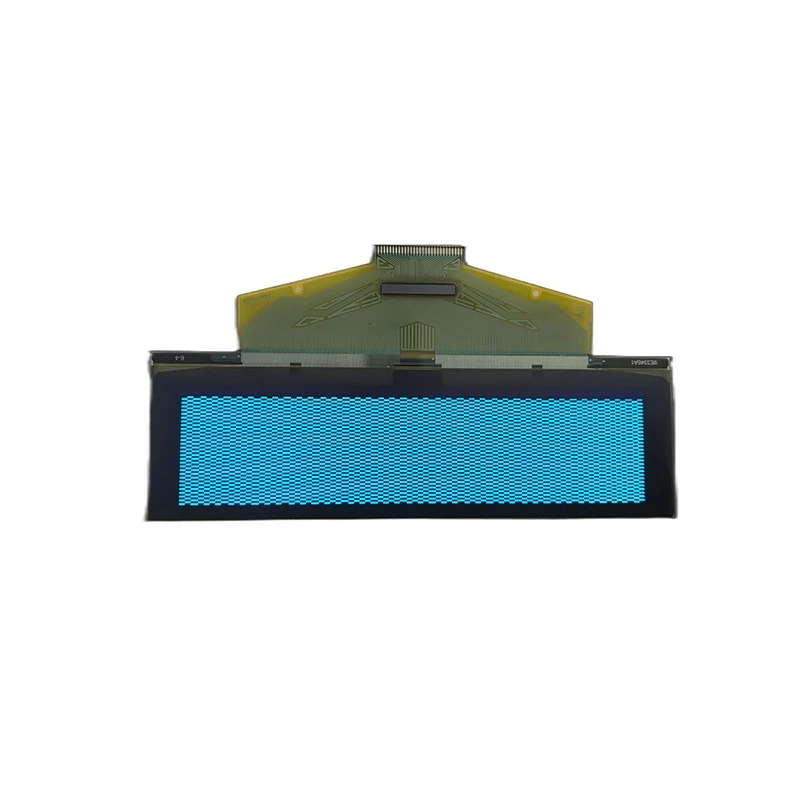

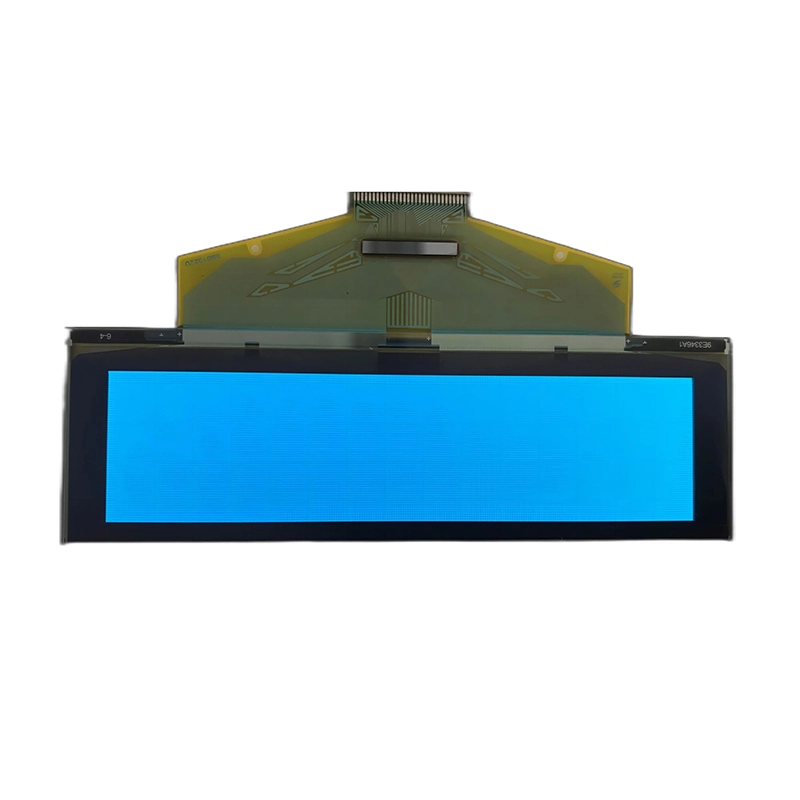

The CNK high quality 3.12 inch PM OLED Screen module are typically much thinner and more flexible than traditional LCD displays. This makes them suitable for applications where space is limited or where curved or flexible displays are desired. OLED display modules offer superior image quality, flexibility, and power efficiency compared to traditional LCD displays. However, considerations such as cost, lifespan, and potential for pixel degradation should be taken into account when selecting OLED Display Modules for specific applications.
The 3.12 inch PM OLED Screen from CNK is easy to use and comes with all the necessary components for easy integration into your design. It is highly customizable, allowing you to adjust the brightness, contrast, and color settings to suit your requirements.
Model:CNKO3120-24213B1
Features: 1) Low power consumption and durability
2) Lightweight and thin 3) Ultra wide temperature
Specification:
1、Resolution: 256(H) x 64(V)
2、Active Area: 76.78 (W) x 19.18 (H)
3、Outline Dimension: 88.00 (W) x27.80 (H)
4、0perating Voltage: 12V
5、0perating Temperature: -40°C~80°C
6、Storage Temperature: -40°C~85°C
7、Viewing Direction: all
8、Display Color :Blue
9、Connector: Parallel / Serial
10、Driver IC: SSD1322UR1
11、package type: COF
12、RoHS Compliant: YES
Applications: industrial control instruments, vehicle mounted aftermarket, audio equipment, etc
