2.45”TFT

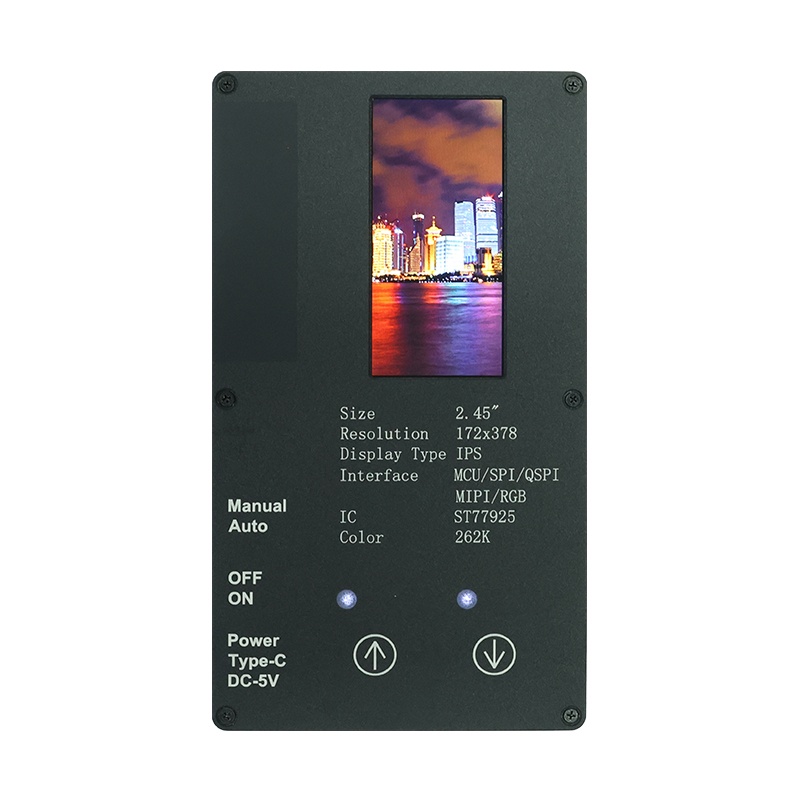

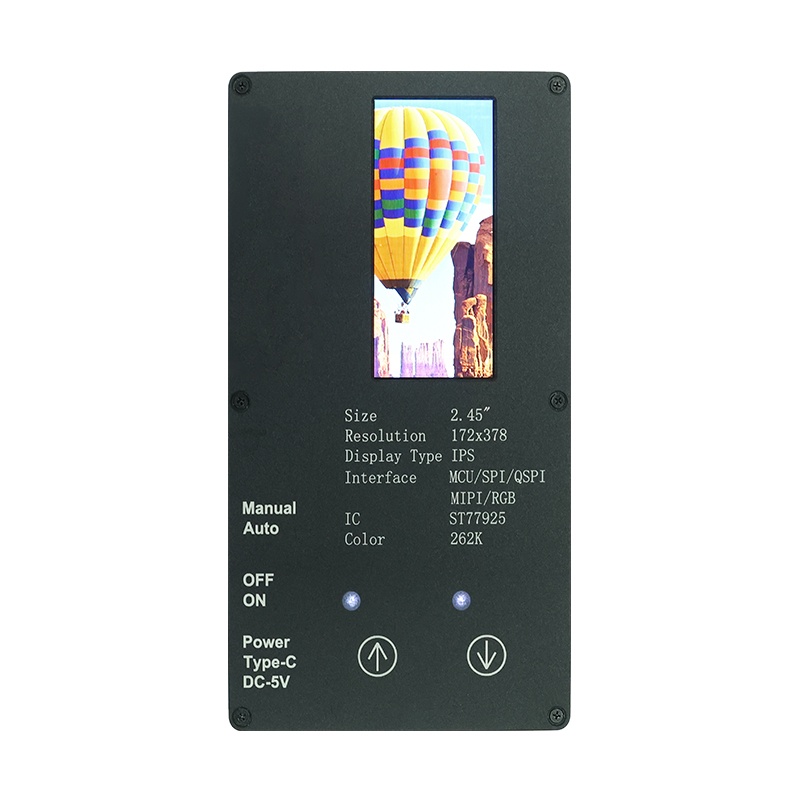

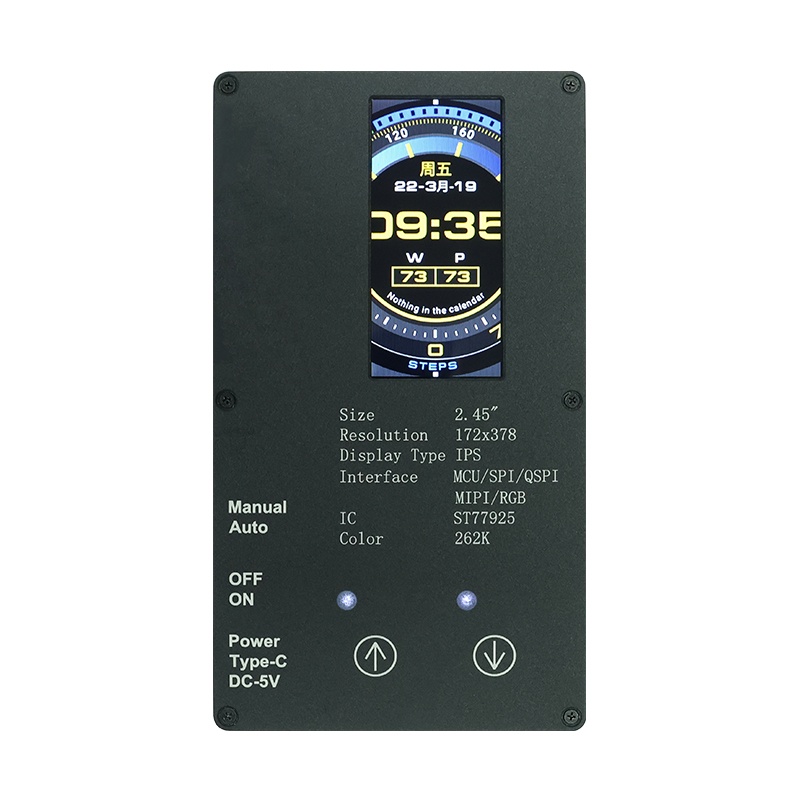

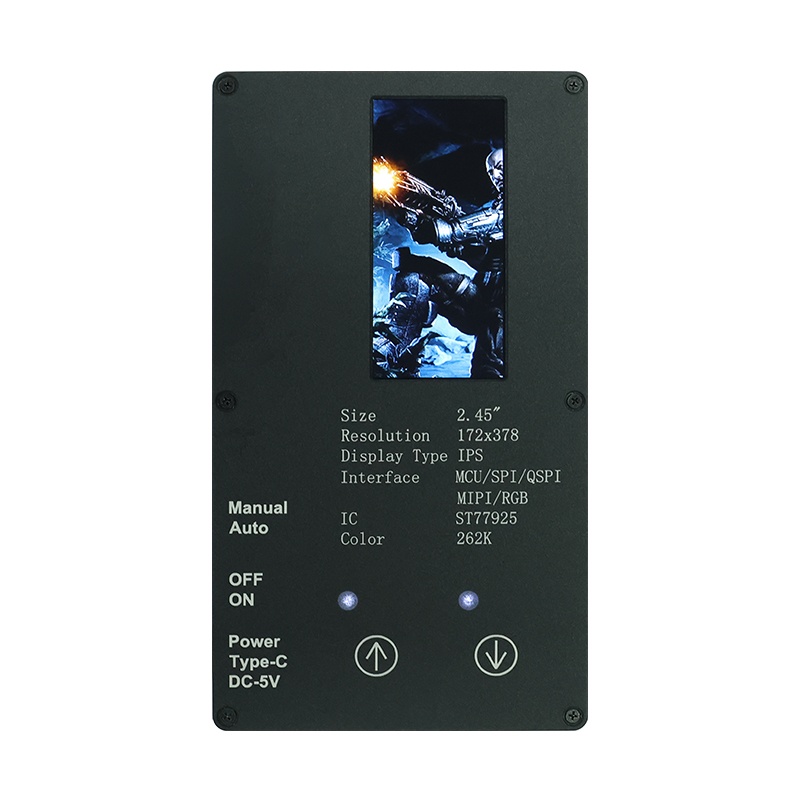

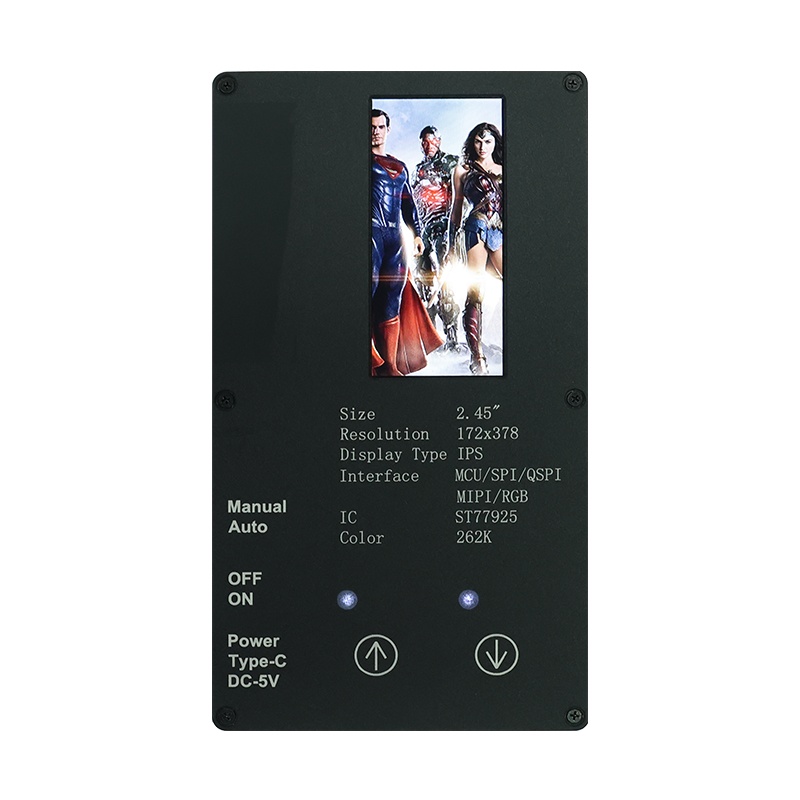

In an era where smart devices pursue ultimate user experience, CNK Electronics Co., Ltd. introduces its all-new 2.45” TFT LCD display (Model: CNKT0245), redefining small-screen display solutions with outstanding performance. This IPS TFT LCD boasts a high resolution of 172RGB×378 and 262K colors, delivering rich and detailed visuals. With a full viewing angle and a stable SPI interface, the module is only 1.9mm thick, making it ideal for various applications such as POS terminals, juicers, and mobile power supplies. As a professional TFT LCD display manufacturer, CNK offers deep customization services—from size and interface to operating temperature (-20℃~60℃ reliable operation)—providing flexible options to help your products stand out.

Send Inquiry

Product Description

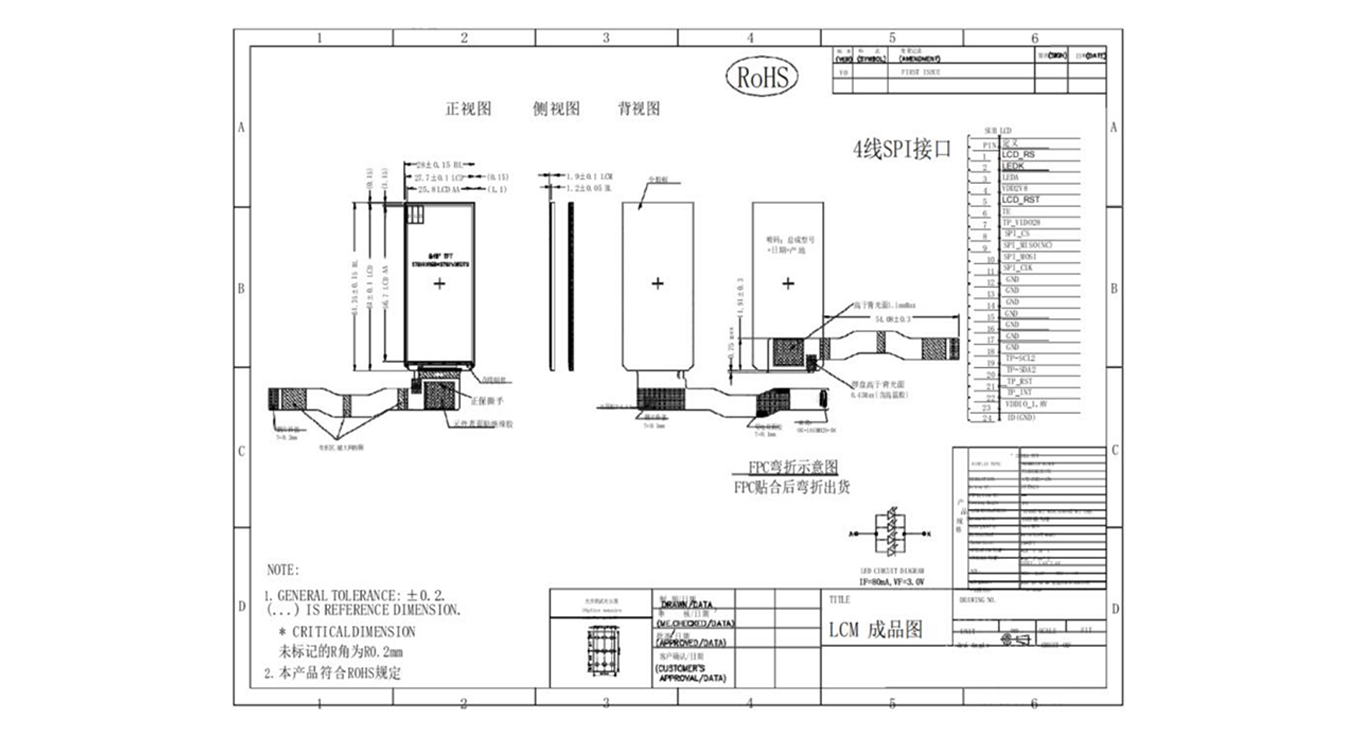

Drawing




General Specification


LCD type
IPS TFT
Pixel Arrangement
RGB Vertical stripe
Display Mode
Transmissive /Normal Black
Display Colors
262K
Resolution
172 RGB x 378 px
IC
ST77925
View Direction
FULL VIEW
Interface
SPI
Module Outline
28(H) x 61.35(V) x1.9(T) (Note1 ) mm
With or without the touch panel
Without
Active Area
25.8(H) x 56.7(V) mm
Operating Temperature
-20~60 ºC
Pixel Pitch
150(H) x 150(V) um
Storage Temperature
-30~70 ºC

Product Application

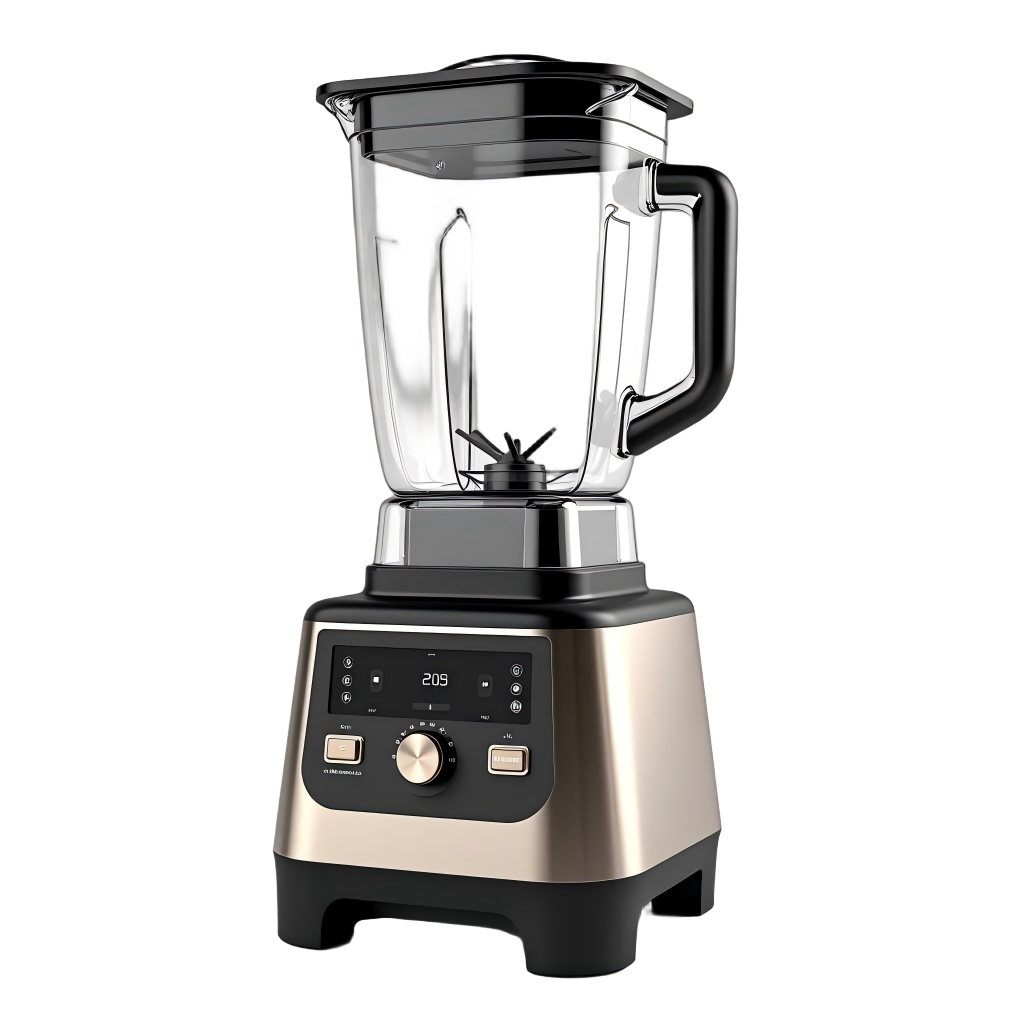

Juicer

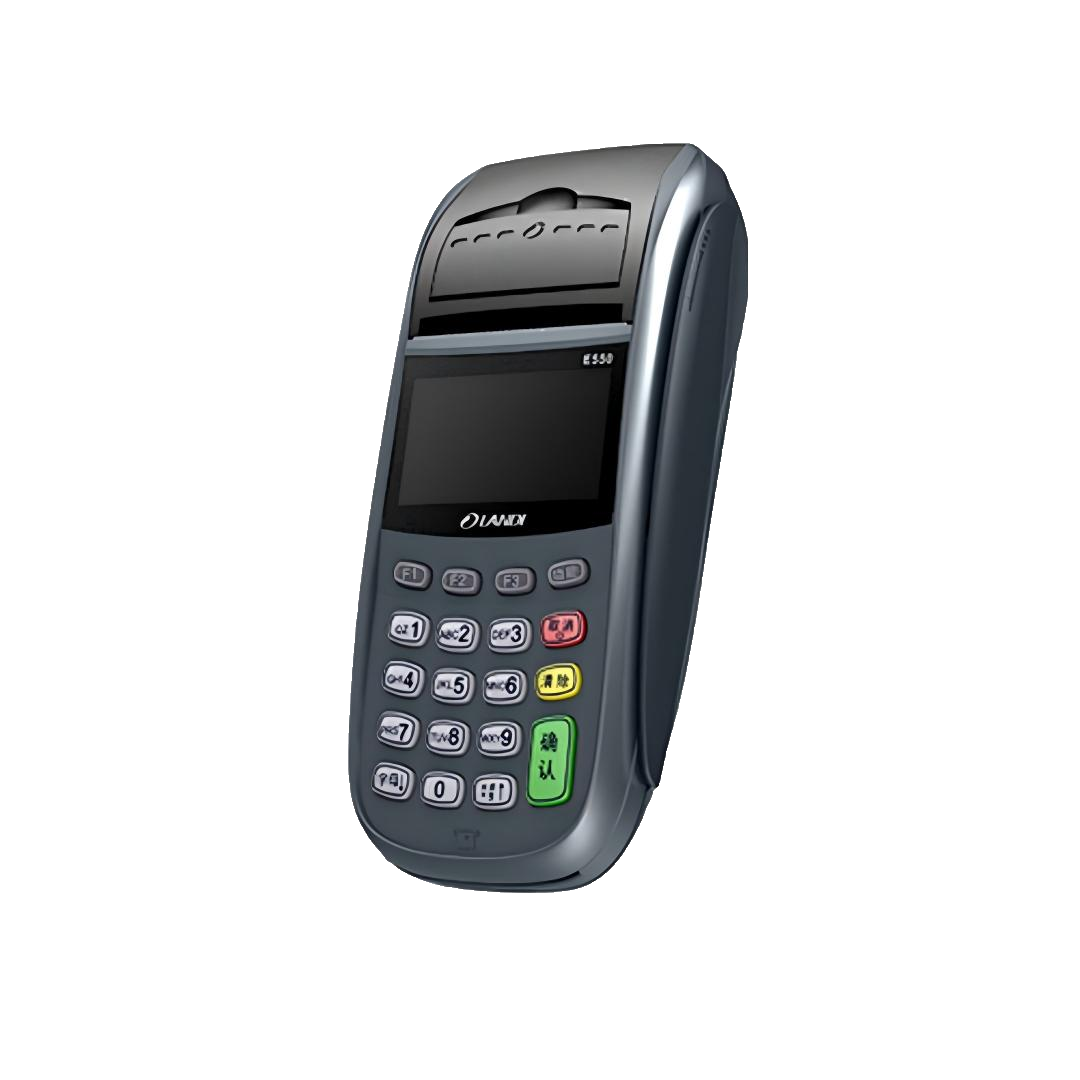

POS Machine

Mobile Power Supply
