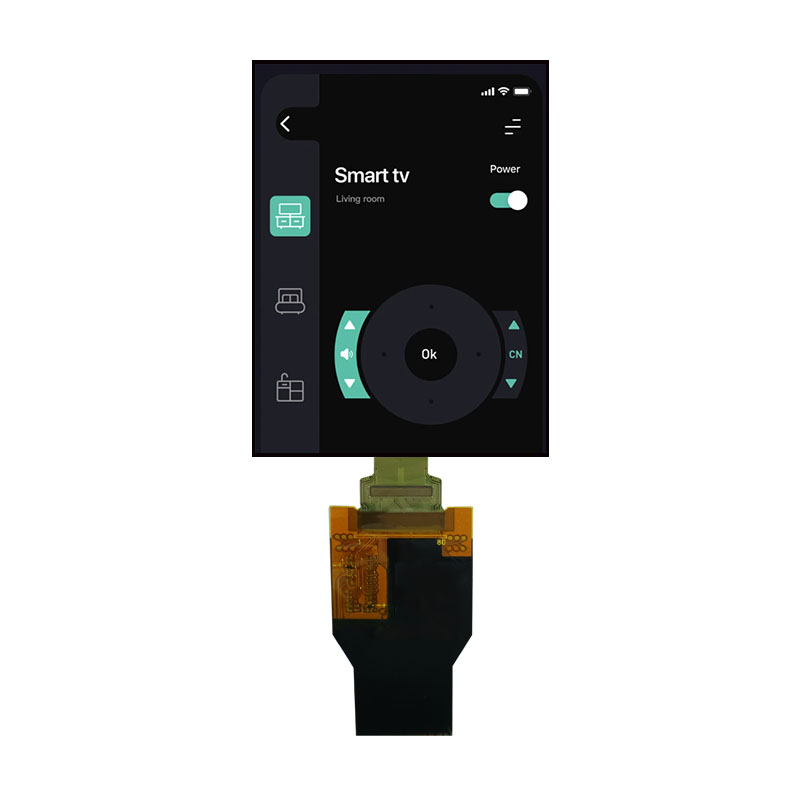

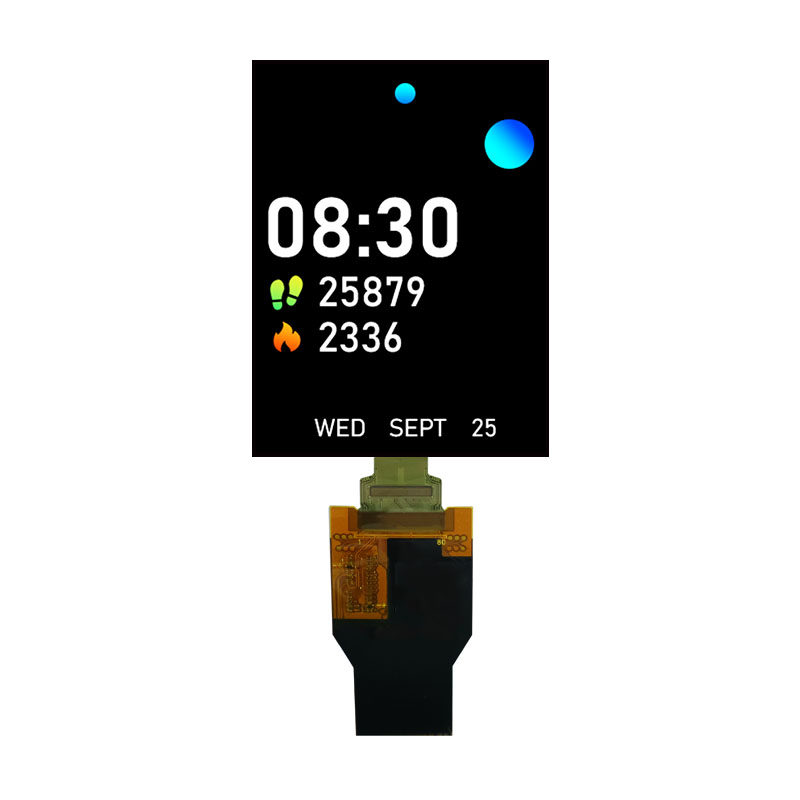

2.4”AMOLED

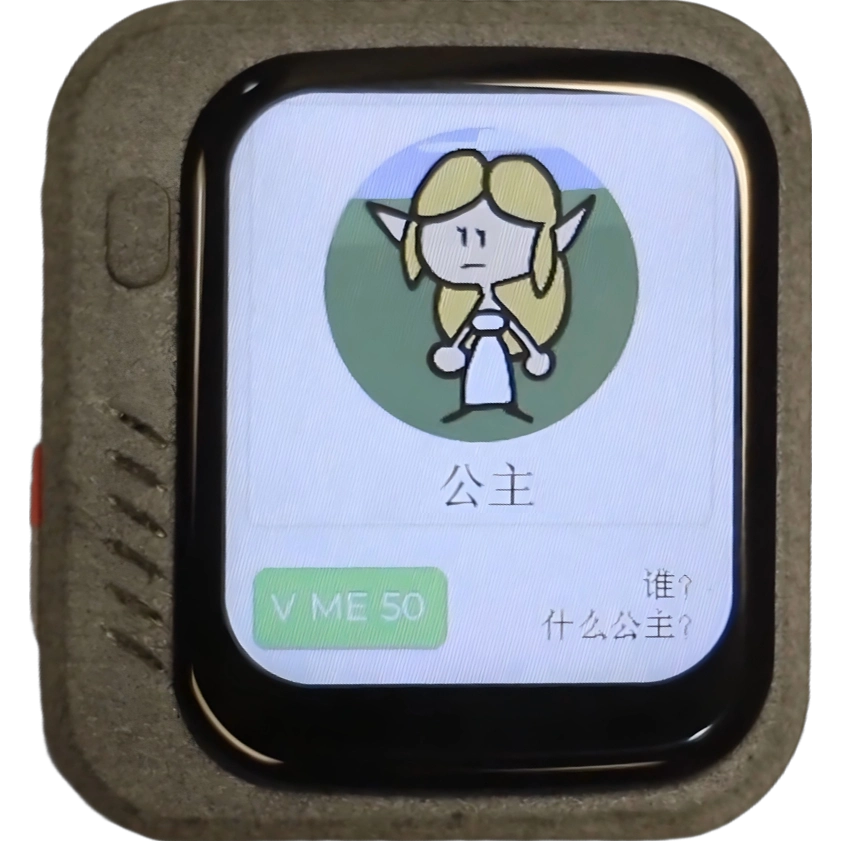

As a professional display manufacturer, CNK Electronics Co., Ltd introduces its industrial-grade 2.4” AMOLED display, revolutionizing HMI experiences with cutting-edge technology. This rigid AMOLED panel utilizes LTPS technology, achieving 450RGB×600 high resolution within a compact 38.72×51.56mm outline. With 100,000:1 ultra-high contrast ratio and 800cd/m² brightness, it maintains perfect visibility even under smart home appliance lighting conditions. Its 16.7M full-color capability and omnidirectional viewing without color shift (≤4JNCD at 30°) make it ideal for smartwatch curved designs. The innovative 0.5mm ultra-slim structure integrates SPI/MCU/MIPI multi-protocol interfaces and operates from -20℃ to 80℃, delivering stable performance for smart display devices. CNK specializes in LCD display and AMOLED technologies, offering core customization capabilities: ✓ Driver IC compatible with mainstream solutions like RM690B0 ✓ Device-specific optical tuning for appliances/wearables ✓ Full technical support from tooling to mass production

Model:CNKAO0240-25473A1

Send Inquiry

Product Description

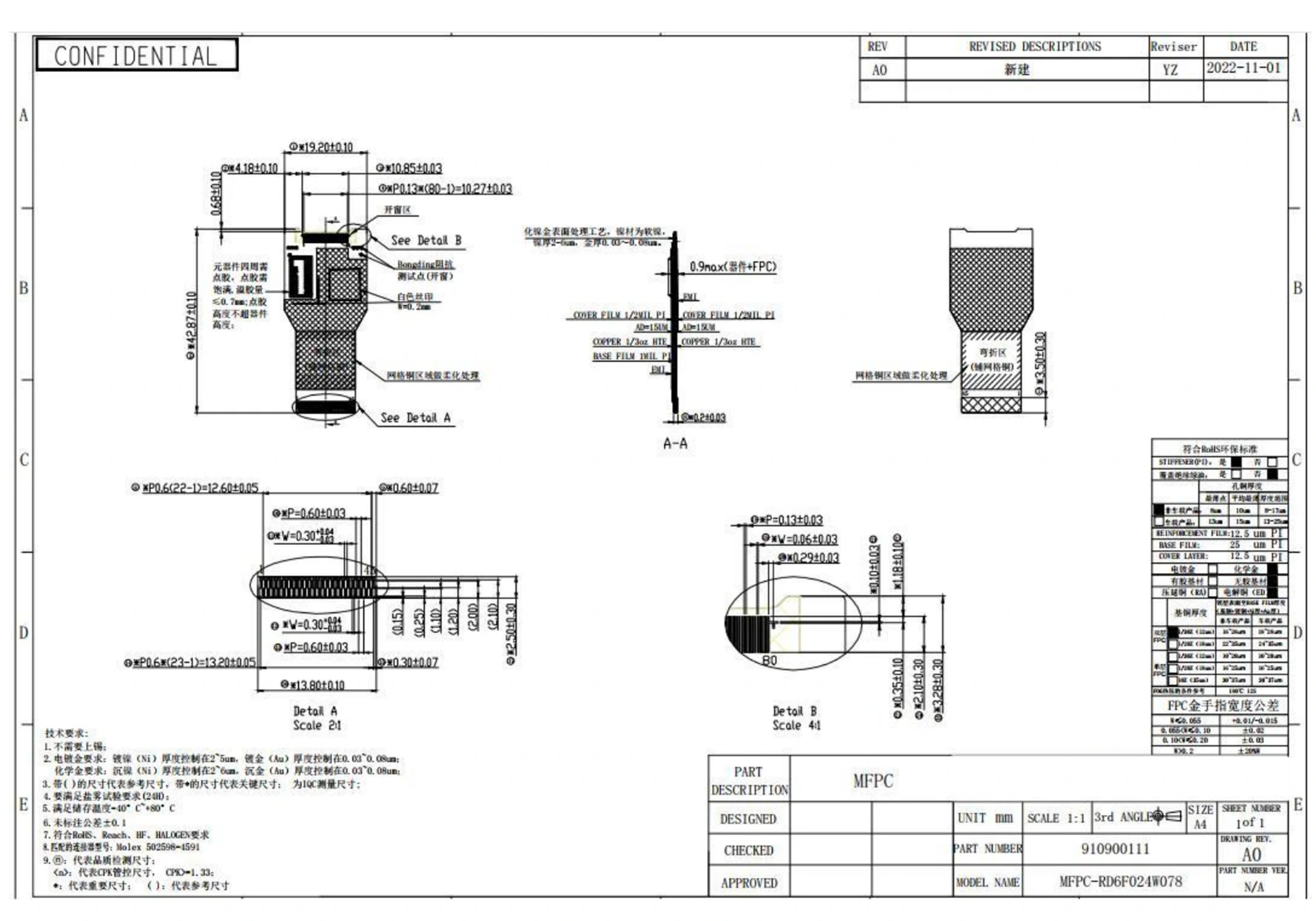

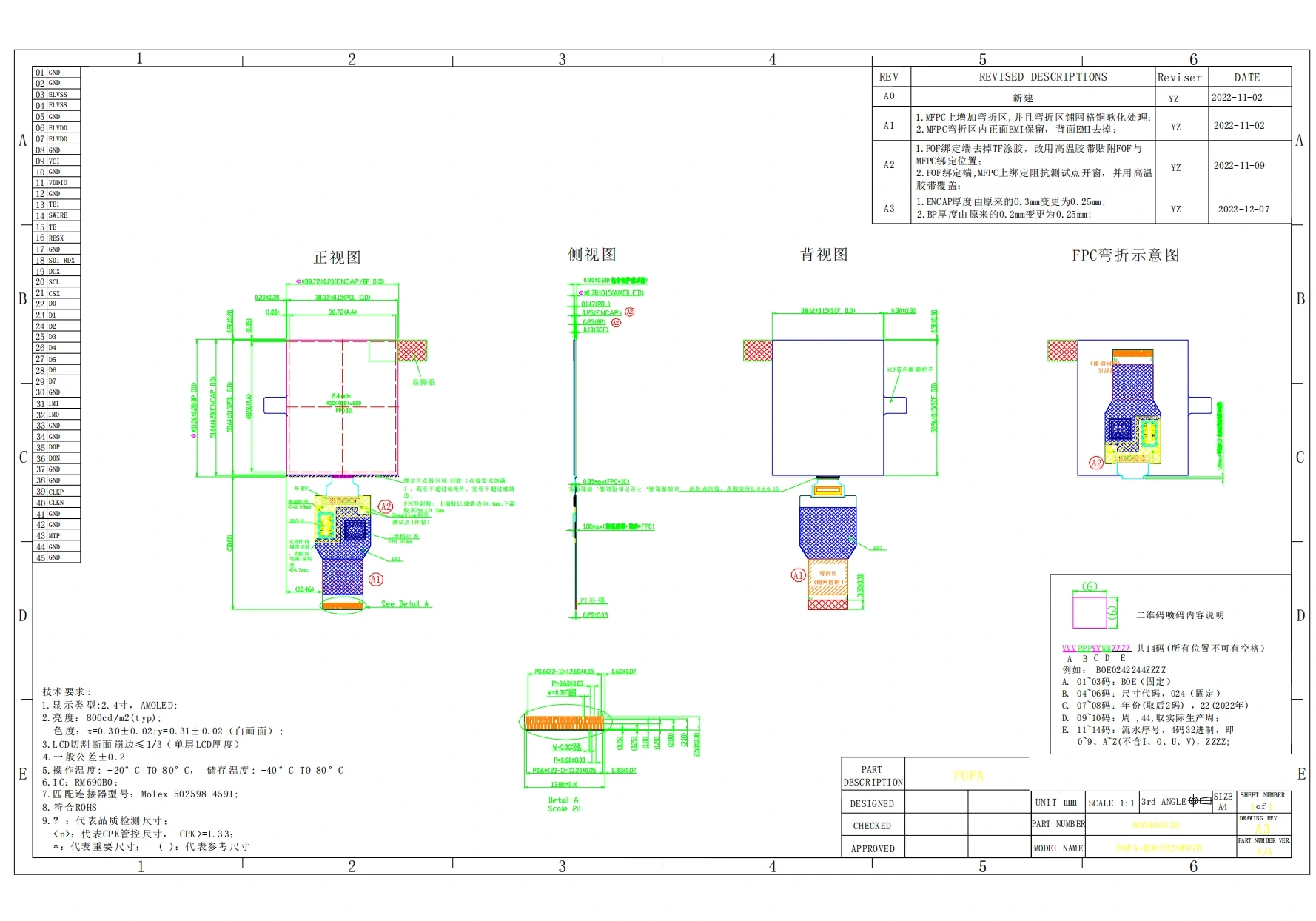

Drawing

General Specification

Display type	Rigid AMOLED	Life time	290h
Active Area	36.72*48.96mm	Panel Thickness	0.5mm
Panel outline(H x V)	38.72*51.56mm	Polarizer Type	0.147mm
Resolution	450RGB*600	SCF	0.13mm
Color Depth	16.7M(24bit)	Brightness	800cd/m
Viewing Direction	All direction	contrast ratio	100000:1
Driver IC (Type)	RM690B0	Color shift(L/R/U/D 30°)	4JNCD
Interface	SPI/MCU/MIPI	Operation Temperature	-20~+80°C
TFT Technology Type	LTPS	Storage Temperature	-40~+80°C
