      2.06"AMOLED

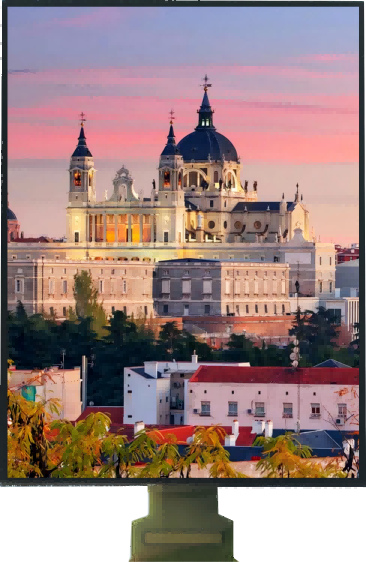

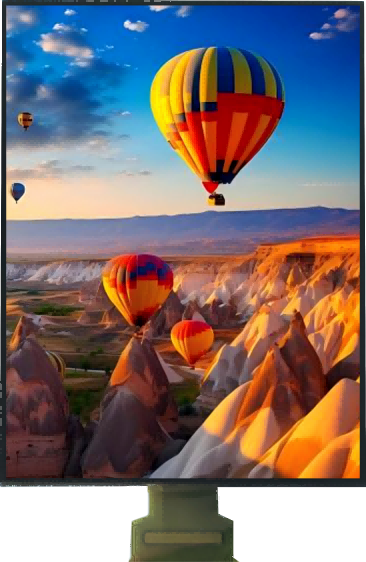

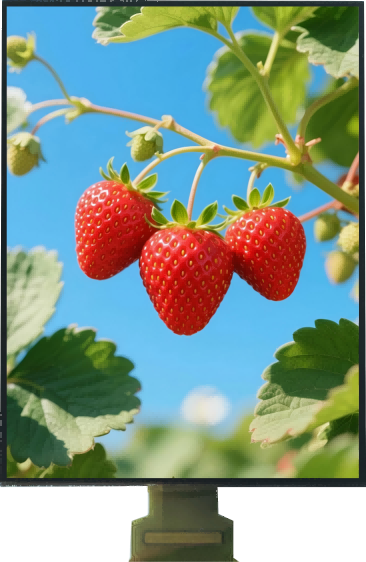

      This 2.06-inch portrait-mode AMOLED display module, powered by the C05301AF driver IC, delivers a 410×502 resolution for crisp image quality with natural color reproduction and excellent contrast.

      Send Inquiry

      Product Description

      Drawing



      General Specification

      Size
      		 2.06"
      		 Orientation
      		 Portrait
      Driver IC
      		  C05301AF
      		 Module Dimensions
      		 36.42 × 43.72 × 0.83 mm
      Operating Temperature
      		  -20°C ~ +70°C
      		 Resolution
      		 410 (H) × 502 (V)
      Viewing Angle
      		 ALL (Full View)
      		 Interface
      		 MIPI
      Active Area
      		 33.09 × 40.51 mm


      Product Application

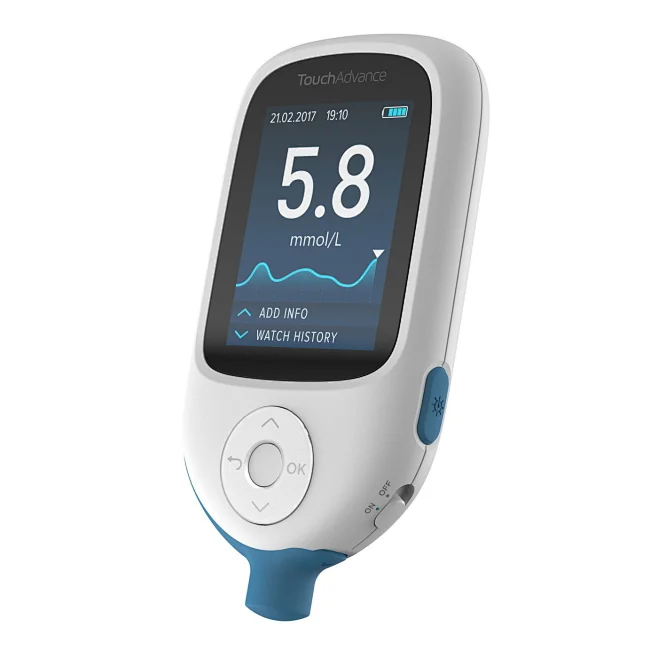

      blood pressure monitors

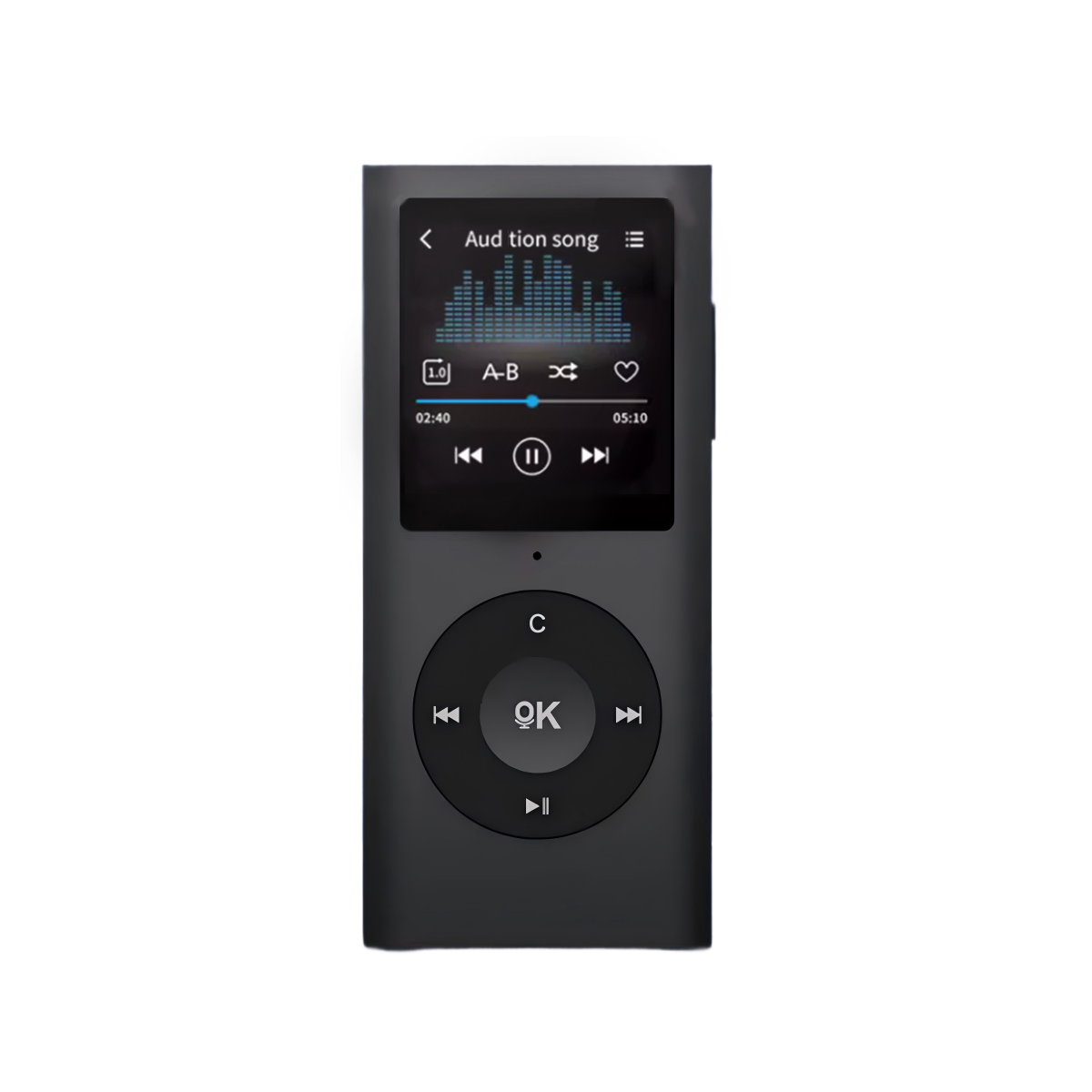

      MP3

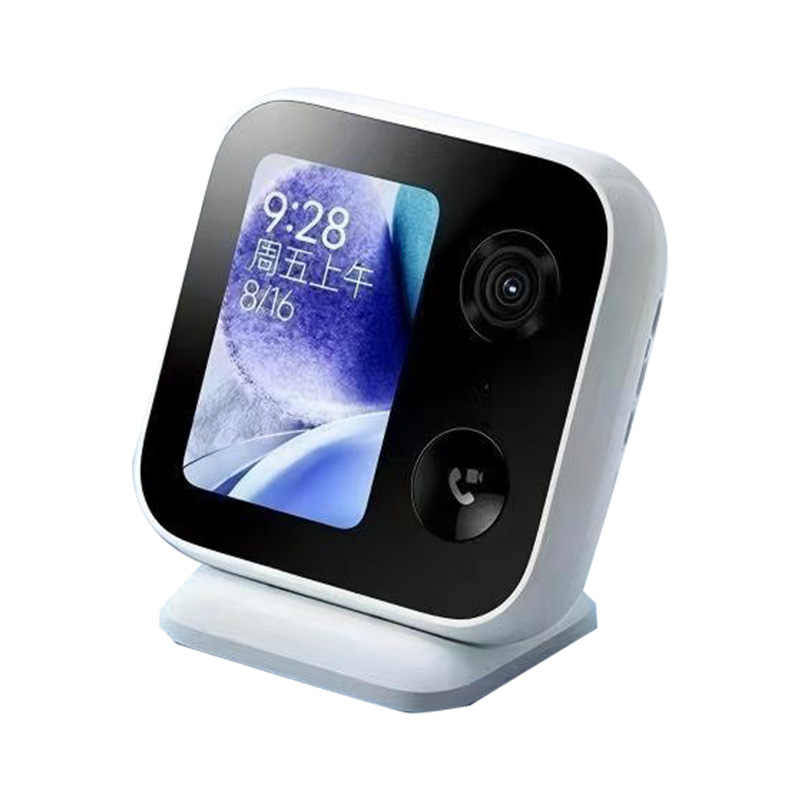

      smart surveillance systems
