10.1”HMI

Designed for high-demand applications, the 10.1-inch HMI human-machine interaction module redefines the industrial interactive experience with professional performance. It features a 10.1-inch IPS full-viewing-angle hard screen with a high resolution of 1280×800, delivering clear and detailed visuals. Combined with highly sensitive capacitive touch technology, it provides precise and smooth operational feedback. Its core advantages include a wide operating temperature range from -30°C to 85°C, ensuring stable performance in diverse environments such as EV charging stations, medical equipment, and portable displays.
Model:CNKHTWSVGA1010IA-C02

Send Inquiry

Product Description

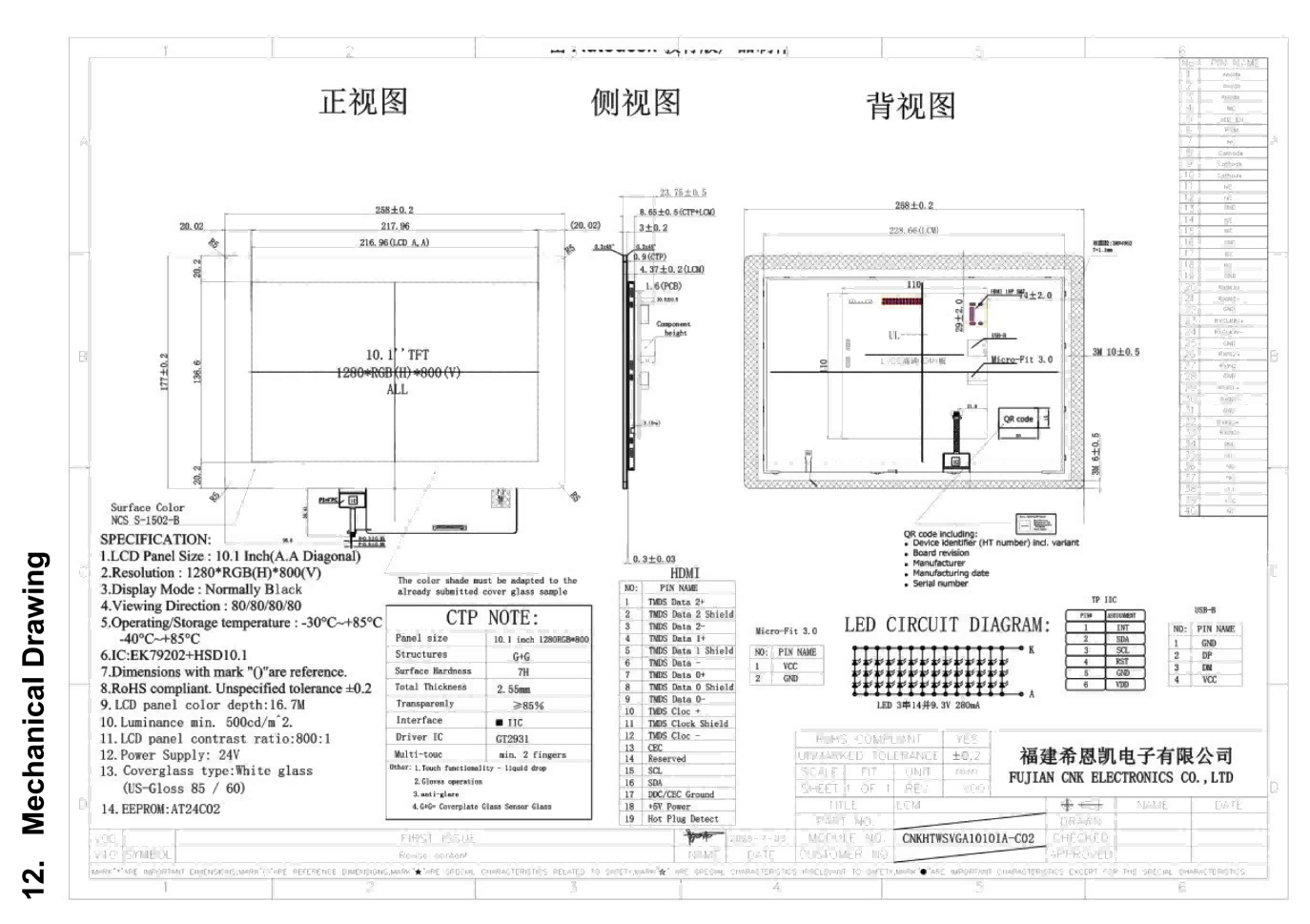

Drawing


General Specification

LCD Size
10.1
Resolution
1280(RGB)*800
Panel Type
IPS
Display Mode
TRANSMISSIVE,NORMALLY BLACK
Display Number of Colors
16.7M
Viewing Direction
ALL VIEWING
Module Size
258.0*177.0*24.75
Weight
TBD
Driver IC
EK79202 or compatible
Interface
HDMI.USB
Backlight driving condition
280mA @9.3V (Typ.)
Touch panel
Capacitive
Touch controller
Integrated in the system
Operation temperature
-30~85 ºC

Product Application

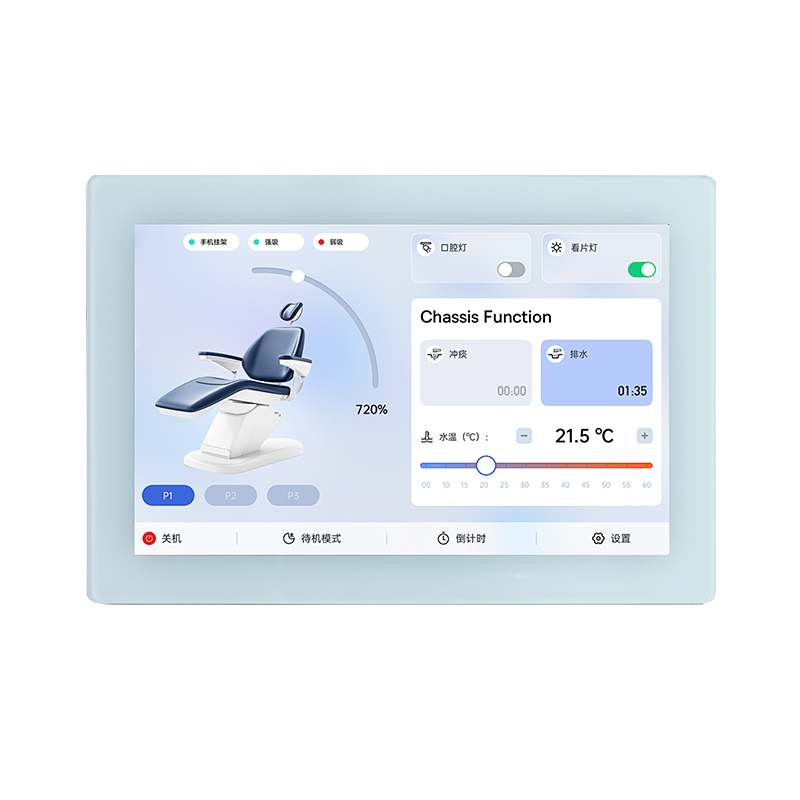

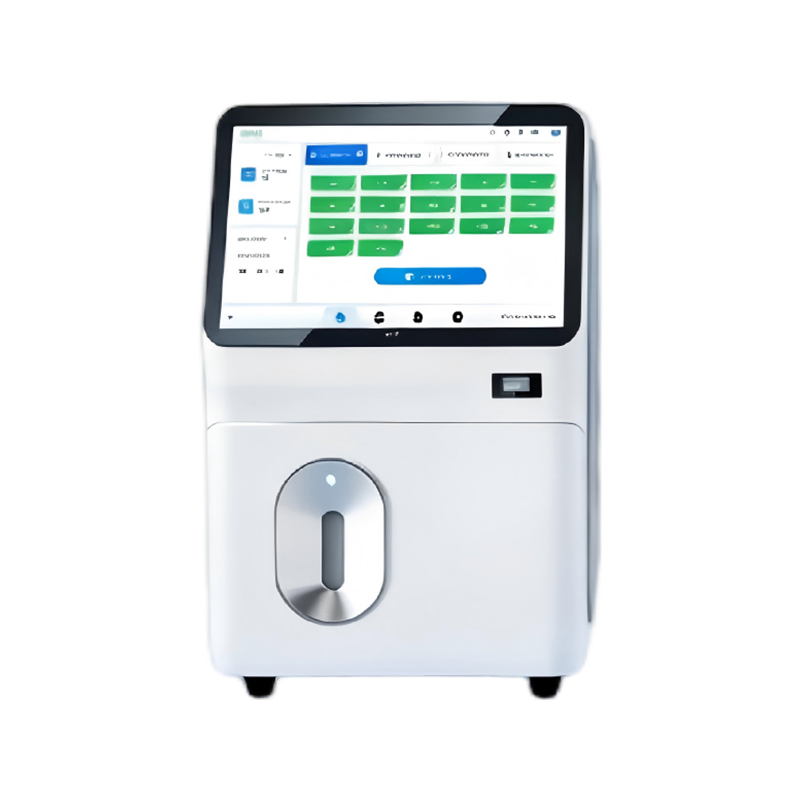

Medical Devices

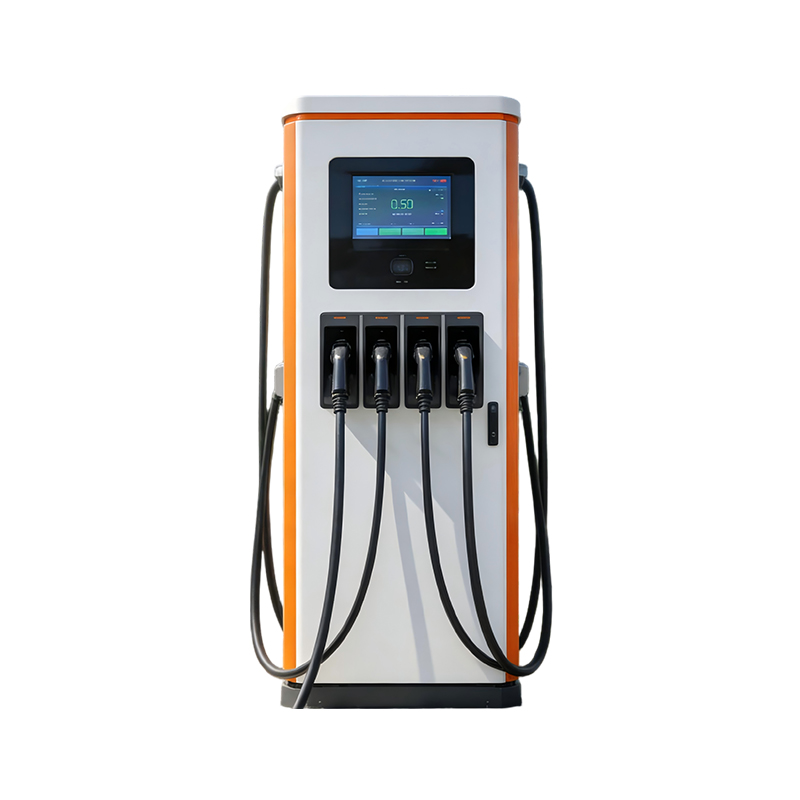

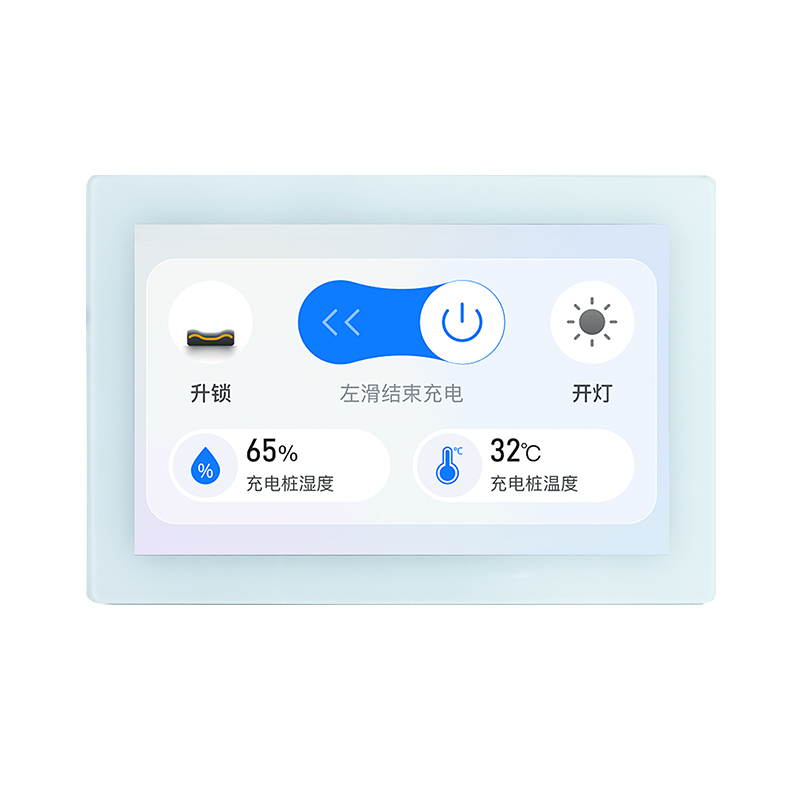

Charging Station

Portable Display
