1.83 inch TFT Display

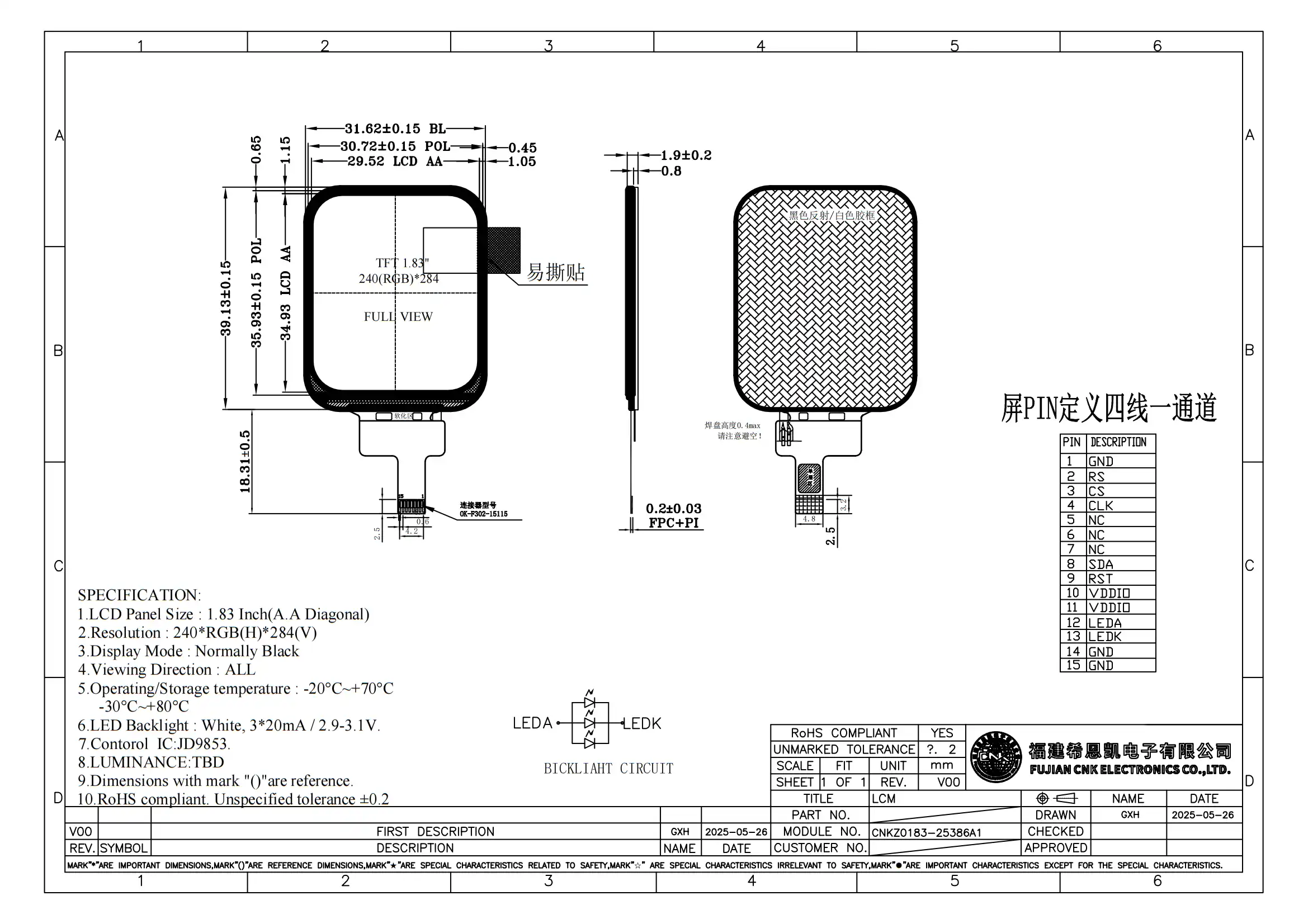

As a professional Chinese display manufacturer, CNK has launched a 1.83-inch TFT display (model: CNKT0183-25386A1). This product uses IPS hard screen technology and is equipped with JD9853 driver IC. It supports 240×284px resolution and 262K full-color display, and has a full range of viewing angles and a transmissive normally black mode. The module size is compact (31.62×39.13×1.9mm), and efficient communication is achieved through the SPI four-wire interface. The operating voltage is 2.6-3.3V and it can adapt to industrial environments from -20℃ to 70℃. This TFT/LCD combines high color reproduction and low power consumption, and is optimized for portable devices, industrial control HMI and other scenarios.
