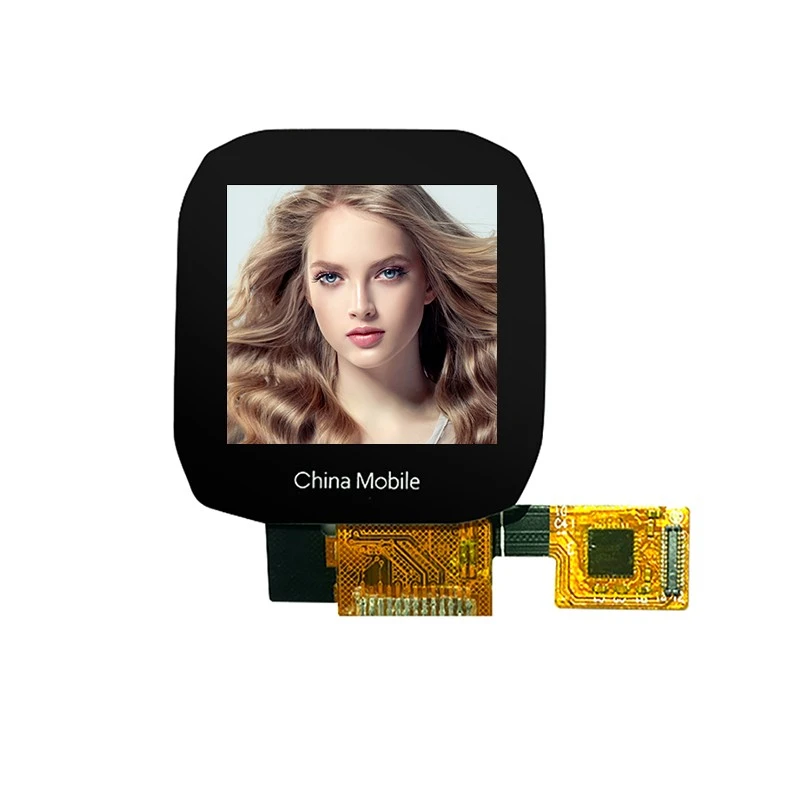

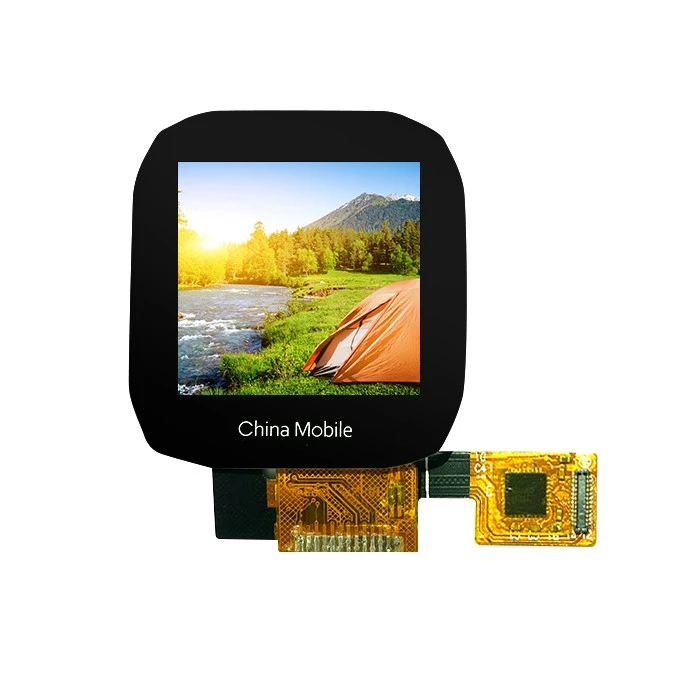

1.3 Inch 240*240 Lcd Display
  • 1.3 Inch 240*240 Lcd Display1.3 Inch 240*240 Lcd Display
  • 1.3 Inch 240*240 Lcd Display1.3 Inch 240*240 Lcd Display
  • 1.3 Inch 240*240 Lcd Display1.3 Inch 240*240 Lcd Display

1.3 Inch 240*240 Lcd Display

With its high resolution, vivid colors, and clear display, this CNK® high quality 1.3 Inch 240*240 Lcd Display is an excellent choice for any gadget that requires a screen display. We understand that choosing the perfect component for your device can be challenging because there are many options available. But we assure you that this LCD screen will exceed your expectations and provide the best viewing experience for your users.

Send Inquiry

Product Description

Our CNK® 1.3 inch 240*240 LCD display is designed to deliver high-quality images and sharp text, making it easy to read and navigate through your device. You'll be impressed by the clarity and brightness of the screen. Whether you're working in a bright outdoor area or a dimly lit room, our display will provide you with a comfortable viewing experience.


LCD Size: 1.3 inch
Panel Type: a-si TFT
Resolution: 240x(RGB)x240 pixel
Display Mode: Normally black, Transmissive
Display Number of Colors: 262K

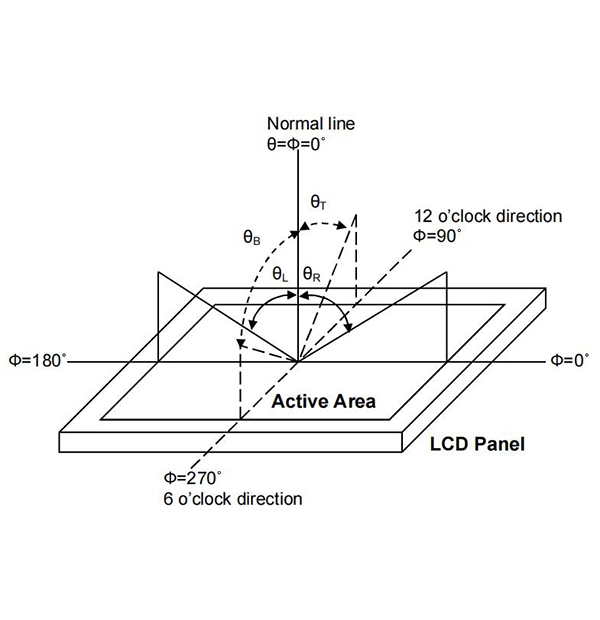

Viewing Direction: ALL o'clock
Contrast Ratio: 170

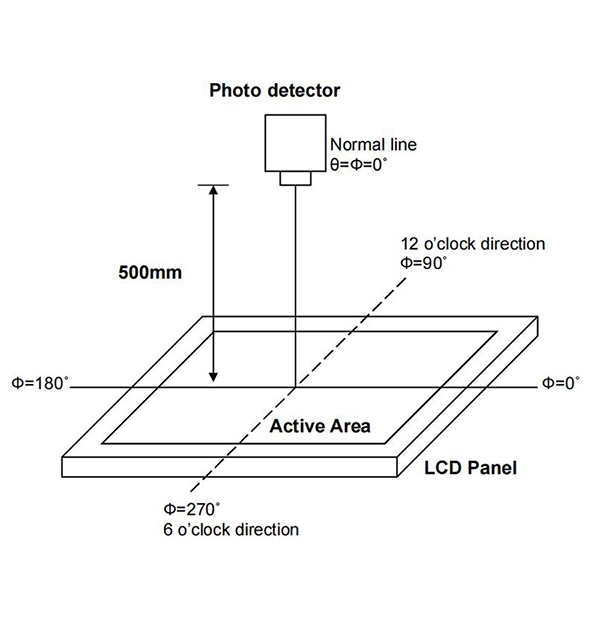

Luminance: 220 cd/m2
Module Size: 33.56(W)x33.56(L)x32.63(T) mm
Driver IC: GC9307
Driver IC RAM: 240x16x240 bit
Light Source: 2 White LEDs in Parallel
Interface: 4 White SPI
Operating Temperature: -20~70 ℃
Storage Temperature: -30~80 ℃

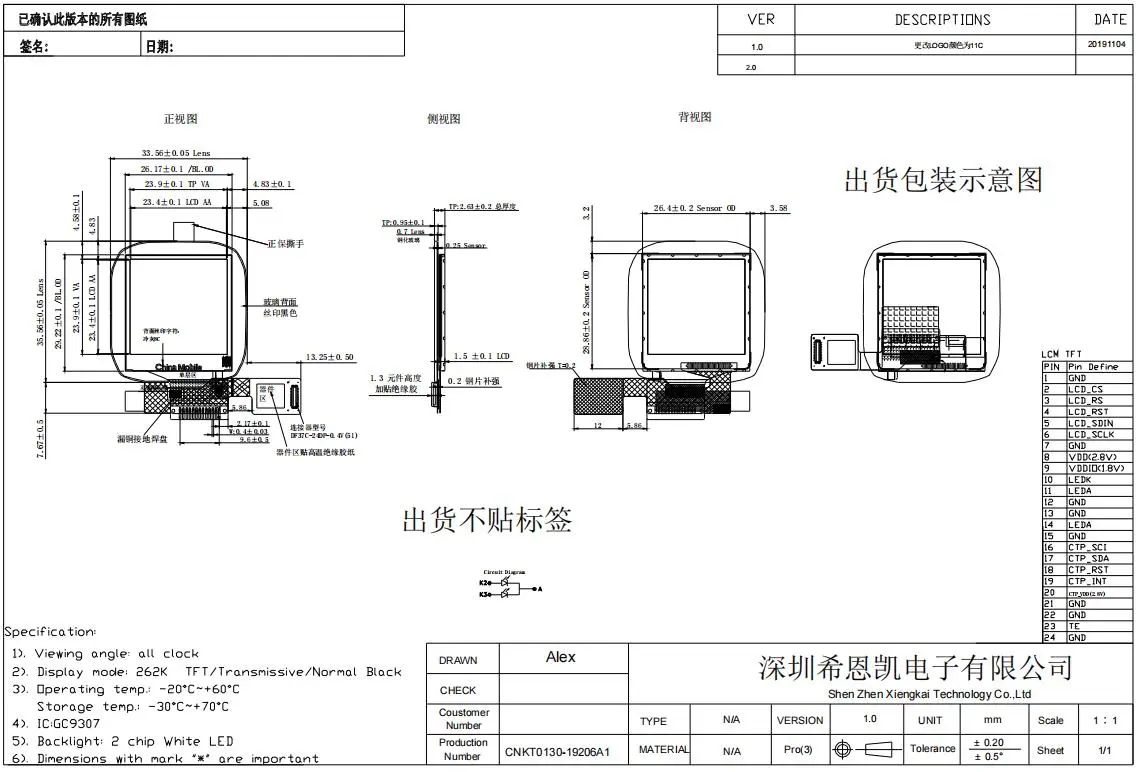

Mechanical Drawing

Features and Benefits

Vivid Colors:
Our display comes with a full-color screen that brings your images and graphics to life. With its high color gamut, it provides an accurate representation of your images and videos, making your content more engaging and enjoyable to watch. You can expect deeper blacks, brighter whites, and more expressive colors from our 1.3 inch 240*240 LCD display.

High Resolution:
Our LCD display comes with a resolution of 240*240 pixels, which is high enough to display all your content in detail. This high resolution makes it perfect for smartwatches, fitness trackers, and other electronic gadgets that require a small and compact screen but also deliver detailed and precise information.

Our 1.3 inch 240*240 LCD display is compatible with a wide range of devices, thanks to its versatile design. It can be integrated with other components of your device without any difficulty, making it an excellent choice for OEMs and developers. It's also compatible with several types of controllers, making it simple to implement into your product.
