Product Description

Triple-Size HD Display · Smart Display Component Solution

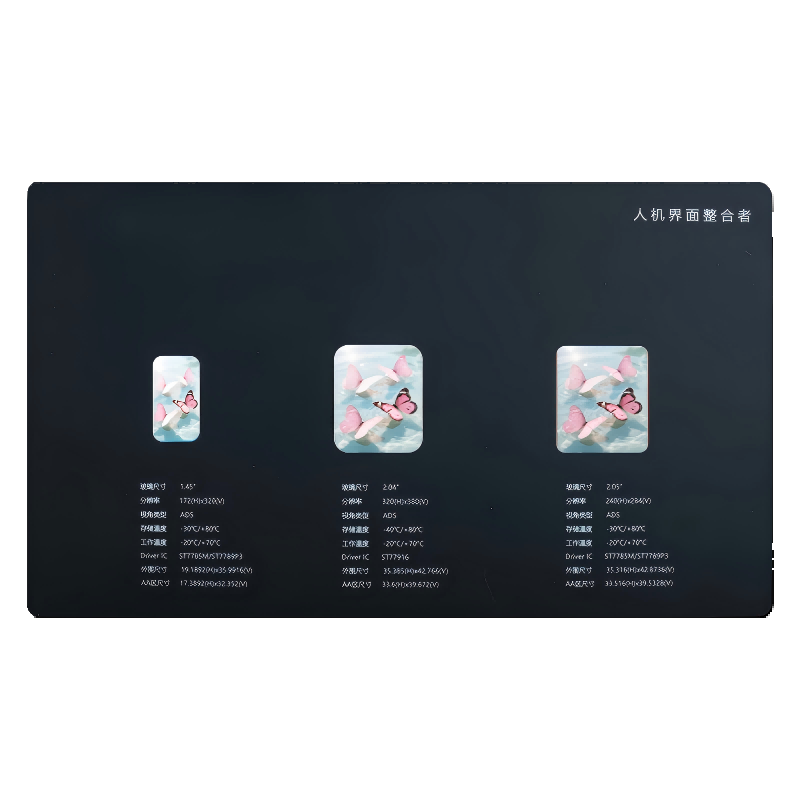

This solution offers three ADS-type HD display panels in 1.45", 2.04", and 2.05" sizes, with resolutions of 172×320, 320×380, and 240×284 respectively. The panels are driven by ST7785M/ST7789P3 and ST77916 driver ICs, and operate within a temperature range of -20°C to +70°C. The graduated size options accommodate various structural designs for wearable and portable devices, making the panels suitable for applications such as sports watches, MP3 players, and smart AI speakers. With wide viewing angles, high stability, and broad-temperature operability, these display modules meet diverse display requirements across multiple terminal devices.

General Specification

Size	1.45"	Resolution	172(H) x 320(V)
Viewing angle type	ADS	Storage temperature	-30°C/+80°C
Operating temperature	-20°C/+70°C	Driver IC: ST7785M/ST7789P3	ST7785M/ST7789P3
Peripheral size	19.1892(H) x 35.9916(V)	AA area size	17.3892(H) x 53.76(V)

Triple-Size HD Display · Smart Display Component Solution

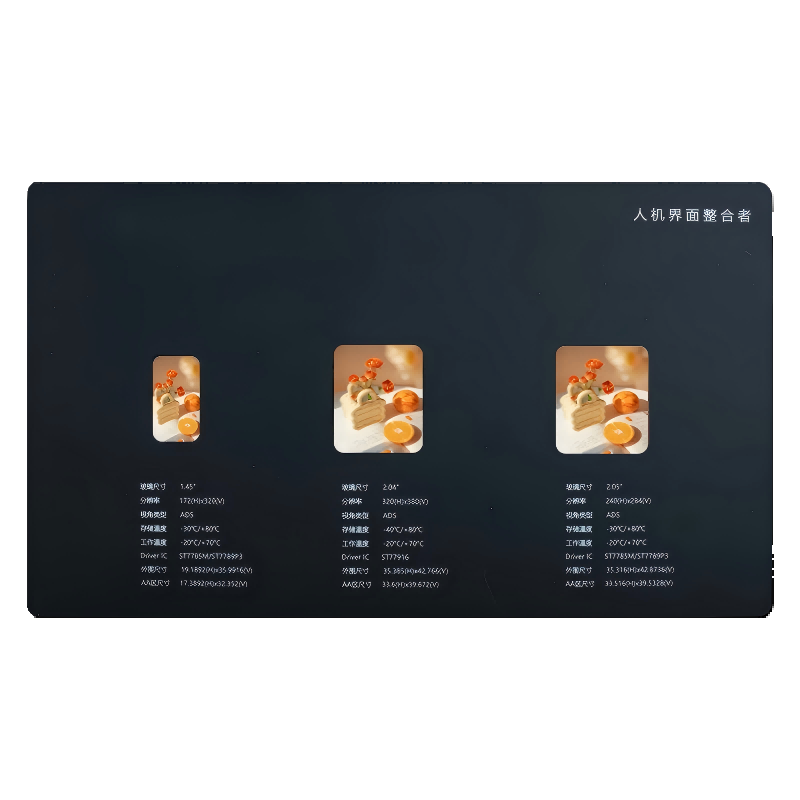

This solution offers three ADS-type HD display panels in 1.45", 2.04", and 2.05" sizes, with resolutions of 172×320, 320×380, and 240×284 respectively. The panels are driven by ST7785M/ST7789P3 and ST77916 driver ICs, and operate within a temperature range of -20°C to +70°C. The graduated size options accommodate various structural designs for wearable and portable devices, making the panels suitable for applications such as sports watches, MP3 players, and smart AI speakers. With wide viewing angles, high stability, and broad-temperature operability, these display modules meet diverse display requirements across multiple terminal devices.

General Specification

Size	2.04"	Resolution	320(H) x 380(V)
Viewing angle type	ADS	Storage temperature	-40°C/+80°C
Operating temperature	-20°C/+70°C	Driver IC: ST77916	ST77916
Peripheral size	35.385(H) x 42.766(V)	AA area size: 33.6(H) x 39.672(V)

Triple-Size HD Display · Smart Display Component Solution

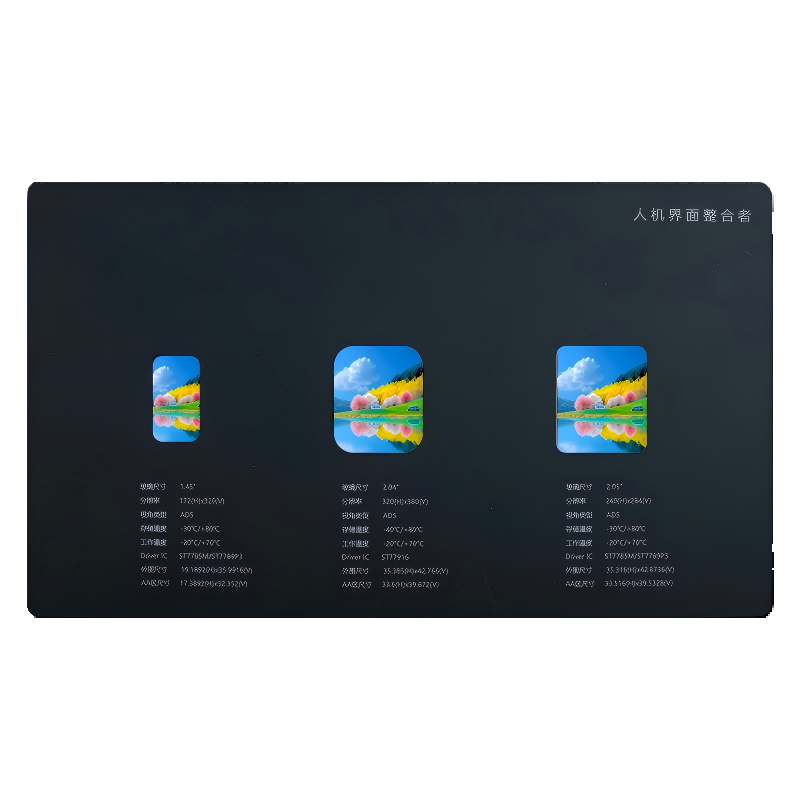

This solution offers three ADS-type HD display panels in 1.45", 2.04", and 2.05" sizes, with resolutions of 172×320, 320×380, and 240×284 respectively. The panels are driven by ST7785M/ST7789P3 and ST77916 driver ICs, and operate within a temperature range of -20°C to +70°C. The graduated size options accommodate various structural designs for wearable and portable devices, making the panels suitable for applications such as sports watches, MP3 players, and smart AI speakers. With wide viewing angles, high stability, and broad-temperature operability, these display modules meet diverse display requirements across multiple terminal devices.

General Specification

Size	2.05"	Resolution	240(H) x 284(V)
Viewing angle type	ADS	Storage temperature	-30°C/+80°C
Operating temperature	-20°C/+70°C	Driver IC	ST7785M/ST7789P3
Peripheral size	35.316(H) x 42.8736(V)	AA area size	33.516(H) x 39.5328(V)
